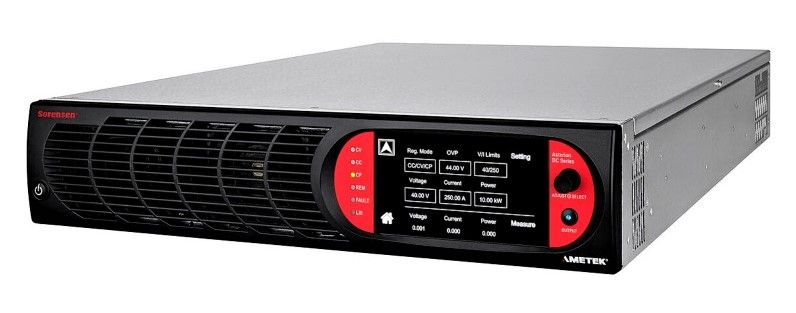

Sorensen AST100-100
| Attributo | Valore |
|---|---|
| Tensione di uscita | 0 – 100 V |
| Corrente di uscita | 0 – 100 A |
| Potenza massima | 10.000 W (10 kW) |
| Tipo di alimentazione | Alimentatore CC programmabile |
| Interfaccia di programmazione | RS-232, GPIB (opzionale), interfaccia analogica |
| Regolazione della tensione | 0,05% del fondo scala |
| Regolazione della corrente | 0,1% del fondo scala |
| Tensione di ingresso (alimentazione) | 208/240 V CA, trifase |
| Ondulazione e rumore (tensione) | 50 mV picco-picco massimo |
| Temperatura di esercizio | 0 °C – 50 °C |
Sorensen AST100-100 Options:
- AST100-100 - 0 - No Interface Option
- AST100-100 - 1 - GPIB Interface
- AST100-100 - 2 - EtherCAT Interface
- AST100-100 - C - Input Voltage: 1-phase 90-145 VAC, 1-phase/3-phase 180-264 VAC
- AST100-100 - D - Input Voltage: 400 VAC, 3-phase (4-wire + Ground)
- AST100-100 - E - Enhanced Front Panel
- AST100-100 - 0 - No Additional Options
- AST100-100 - 1 - Isolated Analog Control
- AST100-100 - 5330201-01R - Rack Slides (1 pair)
- AST100-100 - 890-524-01 - Paralleling/Series Cable (2 cables required to parallel/series 2 units)
- AST100-100 - AST-Z540 - ANSI Z540 Certified Calibration
- AST100-100 - AST-17025 - ISO 17025 Certified Calibration
| Model | AST100-100 |
|---|
SORENSEN AST100-100 Asterion DC Power Supply
The Sorensen AST100-100 Asterion DC fixed range supplies are economical, traditional rectangular wave output power supplies with all the enhanced operation advantages standard with the Asterion platform. The touchscreen function group icons include a Dashboard, Output Programming Parameters, Measurements, Sequencing, Configuration, Control Interfaces, Applications, and System Settings. Function selection and parameter entry can be achieved either by direct selection from the touchscreen or by using the encoder selector button.
The Sorensen Asterion AST100-100 is designed for testing today's complex electronics, including telecommunications and commercial electronics requiring low profile, light weight power supplies with high power density. The Sorensen AST100-100 is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easy-to-use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB or EtherCAT control interface. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.
Specifications for the SORENSEN AST100-100 Asterion DC Power Supply Include:
| Voltage | 100V |
| Current | 100A |
| Total Power | 10000W |
| Voltage Programming Accuracy | +/- 0.1% |
