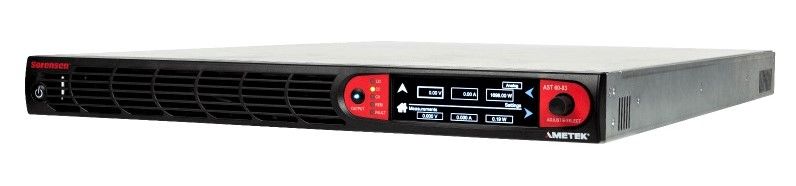

Sorensen AST40-42
| Attributo | Valore |
|---|---|
| Tensione di uscita | 0 - 40 V |
| Corrente di uscita | 0 - 42 A |
| Potenza massima | 1680 W |
| Regolazione della tensione (linea) | 0,01% + 2 mV |
| Regolazione della corrente (linea) | 0,01% + 2 mA |
| Ondulazione e rumore (tensione) | 1 mV RMS |
| Ondulazione e rumore (corrente) | 3 mA RMS |
| Tensione di ingresso | 115/230 V CA, 47-63 Hz |
| Interfacce di controllo remoto | RS-232, GPIB (opzionale) |
| Dimensioni (L x A x P) | 425 x 133 x 635 mm (3U) |
Sorensen AST40-42 Options:
- AST40-42 - 1 - GPIB Interface
- AST40-42 - 2 - EtherCAT Interface
- AST40-42 - C - Input Voltage: 1-phase 90-145 VAC, 1-phase/3-phase 180-264 VAC
- AST40-42 - D - Input Voltage: 400 VAC, 3-phase (4-wire + Ground)
- AST40-42 - E - Enhanced Front Panel
- AST40-42 - 1 (Additional) - Isolated Analog Control
- AST40-42 - 5330201-01R - Rack Slides (1 pair)
- AST40-42 - 890-524-01 - Paralleling/Series Cable (2 cables required to parallel/series 2 units)
- AST40-42 - AST-Z540 - ANSI Z540 Certified Calibration
- AST40-42 - AST-17025 - ISO 17025 Certified Calibration
| Model | AST40-42 |
|---|
SORENSEN AST40-42 Asterion DC Power Supply
The Sorensen Asterion AST40-42 DC power supply is the newest addition to the Asterion platform of power testing solutions. These fixed range supplies are economical, traditional, rectangular wave output power supplies with all the enhanced operation advantages standard with the Asterion platform. The Sorensen AST40-42 is Digital Signal Processor (DSP) controlled and can be operated from the intuitive, easyto-use front panel touchscreen or the Ethernet LXI, USB and RS232 standard control interfaces, as well as through the optional GPIB or EtherCAT control interface.
The Sorensen Asterion AST40-42 is designed for testing today's complex electronics, including telecommunications and commercial electronics requiring low profile, light weight power supplies with high power density. The touchscreen function group icons include a Dashboard, Output Programming Parameters, Measurements, Sequencing, Configuration, Control Interfaces, Applications, and System Settings. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.
Specifications for the SORENSEN AST40-42 Asterion DC Power Supply Include:
| Voltage | 40V |
| Current | 42A |
| Total Power | 1700W |
| Voltage Programming Accuracy | +/- 0.1% |
