Sorensen IB-2-600-100-200
| Attributo | Valore |
|---|---|
| Tensione di Uscita | 600 V |
| Corrente di Uscita | 100 A |
| Potenza Nominale | 200 W |
| Numero di Uscite | 2 |
| Tipo di Alimentazione | Alimentatore da banco programmabile |
| Interfaccia di Controllo | Analogica / Programmabile |
| Regolazione | Tensione e corrente costante (CV/CC) |
| Tensione di Ingresso | 115/230 V CA, 50/60 Hz |
| Protezioni Integrate | Sovratensione, sovracorrente, surriscaldamento |
| Conformità Normativa | CE, RoHS |
Sorensen IB-2-600-100-200 Options:
- IB-2-600-100-200 - IB-S-600-60 - 600V DC Rectifier Source, 60 kW
- IB-2-600-100-200 - IB-S-600-100 - 600V DC Rectifier Source, 100 kW
- IB-2-600-100-200 - IB-S-600-160 - 600V DC Rectifier Source, 160 kW
- IB-2-600-100-200 - IB-S-600-250 - 600V DC Rectifier Source, 250 kW
- IB-2-600-100-200 - IB-S-600-320 - 600V DC Rectifier Source, 320 kW
- IB-2-600-100-200 - IB-S-600-400 - 600V DC Rectifier Source, 400 kW
- IB-2-600-100-200 - IB-S-600-500 - 600V DC Rectifier Source, 500 kW
- IB-2-600-100-200 - IB-CAB-USA-100 - UL-489 Compliant Cabinet, 100kW Version USA / Canada
- IB-2-600-100-200 - IB-CAB-USA-160 - UL-489 Compliant Cabinet, 160kW Version USA / Canada
- IB-2-600-100-200 - IB-CAB-USA-250 - UL-489 Compliant Cabinet, 250kW Version USA / Canada
- IB-2-600-100-200 - IB-CAB-USA-320 - UL-489 Compliant Cabinet, 320kW Version USA / Canada
- IB-2-600-100-200 - IB-CAB-USA-400 - UL-489 Compliant Cabinet, 400kW Version USA / Canada
- IB-2-600-100-200 - IB-CAB-USA-500 - UL-489 Compliant Cabinet, 500kW Version USA / Canada
- IB-2-600-100-200 - IB-CAB-USA-650 - UL-489 Compliant Cabinet, 650kW Version USA / Canada
- IB-2-600-100-200 - IB-PDSB-CAB-USA - UL-489 Compliant Power Distribution Switch Box USA / Canada
- IB-2-600-100-200 - IB-M-AC-IN-480 - 480VAC ±10%, 3-Phase Input; for 2-Channel and 4-Channel Units
- IB-2-600-100-200 - IB-IF-ETHERCAT - EtherCAT Interface (2 each RJ45 Connectors); 100 Mbit/s Transmission Rate
- IB-2-600-100-200 - IB-IF-PROFIBUS - Profibus Interface (9-pin DSUB Connector); 12 Mbit/s Transmission Rate
- IB-2-600-100-200 - IB-IF-PROFINET - Profinet Interface (2 each RJ45 Connectors); 12 Mbit/s Transmission Rate
- IB-2-600-100-200 - IB-IF-HSCAN - High-Speed CAN Bus Interface (1 kHz Rate)
- IB-2-600-100-200 - IB-IF-ANALOG-IN - Analog Input Signal (Voltage = 0-10V Full Scale; Current = ±10V Full Scale)
- IB-2-600-100-200 - IB-IF-ANALOG-OUT - Analog Output Signal (Voltage = 0-10V Full Scale; Current = ±10V Full Scale)
- IB-2-600-100-200 - IB-RC-100MB-VPN - Remote Control VPN for AMETEK Maintenance
- IB-2-600-100-200 - IB-RC-100-RENT - Rental fee for remote service module (Tosi-Box)
- IB-2-600-100-200 - IB-REMOTE-UPDATE - Software Adjustment via Remote Control
- IB-2-600-100-200 - IB-TEAM-VIEW - Software adjustment via Teamviewer
- IB-2-600-100-200 - IB-IF-LABVIEW - LabVIEW (NI) Interface with USB to CAN Converter
- IB-2-600-100-200 - IB-IF-MATLAB - MATLAB/Simulink Interface, includes PC and B&R Automation Studio Software
- IB-2-600-100-200 - IB-IMD-2CH - Insulation Monitoring Device with Selective Shutdown for 2-Channel Unit Only; monitors DUT and shuts down output when leakage resistance falls below 100k ohms
- IB-2-600-100-200 - IB-2-ISO-5M - Increase insulation resistance of 2-Channel to > 5 MΩ
- IB-2-600-100-200 - IB-BAT-S-600 - Battery Simulator for 600V Systems; one each required per channel
- IB-2-600-100-200 - IB-BAT-TS-600 - Battery Tester/Simulator for 600V Systems; one each required per channel
- IB-2-600-100-200 - IB-DC-1000 - Output Contactors with Increased Short-time Withstand Current; Vnom 1500V, thermal continuous current 1000A, short-time withstand current ICW 8kA
- IB-2-600-100-200 - IB-MEAS-05-CERT - 0.05% Measurement Accuracy, Test Certificate Included; required for each channel
- IB-2-600-100-200 - IB-FC-DINT-1000 - Protection Diode Mounted in Cabinet; for 2-Channel or 4-Channel systems, maximum rating 1000V / 1000A, for Fuel Cell Testing
- IB-2-600-100-200 - IB-ESTOP-PL-D - Change of safe shutdown time (Emergency Stop); standard setting 5 sec, range 0.5 to 100 sec
- IB-2-600-100-200 - IB-ESTOP-2CON - Emergency Stop (E-STOP) Switch (yellow/red) with Protective Collar installed in control cabinet door
- IB-2-600-100-200 - IB-ESTOP-DOORCON - Door Closed Contacts; E-STOP activated when cabinet doors open; for 2-Channel and 4-Channel systems
- IB-2-600-100-200 - IB-MAG-SAFEDOOR - Magnetic Door Safety Interlocks; for 2-Channel and 4-Channel systems
- IB-2-600-100-200 - IB-DOOR-LOCK - Keyed Door Locks per Cabinet
- IB-2-600-100-200 - IB-CAB-LAMP - Cabinet Lamp with motion sensor mounted on cabinet ceiling; one per cabinet
- IB-2-600-100-200 - IB-CAB-BASE-200 - Cabinet Base Frame; raises cabinet base 200mm to accommodate large cross-section cable entry
- IB-2-600-100-200 - IB-CAB-WHEELS - Cabinet Wheels; four wheeled castors per cabinet, two with stop latches
- IB-2-600-100-200 - IB-LIFT-LUGS - Add 4 Lifting Lugs per Cabinet per DIN 580/582
- IB-2-600-100-200 - IB-CBOX-800-19800 - External Capacitor Box, 800V, 19,800 uF, plastic enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-CBOX-1000-8100 - External Capacitor Box, 1000V, 8100 uF, plastic enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-CBOX-P-1000-20000 - External Capacitor Box, 1000V, 20,000 µF, plastic enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-CBOX-800-20360 - External Capacitor Box, 800V, 20,360 µF, metal enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-CBOX-1000-9660 - External Capacitor Box, 1000V, 9,660 uF, metal enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-CBOX-1100-2500 - External Capacitor Box, 1100V, 2500 uF, metal enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-CBOX-M-1100-5800 - External Capacitor Box, 1100V, 5800 uF, metal enclosure, includes discharge resistors and 5m cables
- IB-2-600-100-200 - IB-PDSB-1-1-1KA-2 - PDSB 1000V / 1000A (1 Input / 1 Output; space for 2 DCU)
- IB-2-600-100-200 - IB-PDSB-2-1-2KA-2 - PDSB 1000V / 2000A (2 Input / 1 Output; space for 2 DCU) for paralleling two i-BEAMs
- IB-2-600-100-200 - IB-SAFE-MST-PDSB - Safety Master Control for Parallel Operation (PDSB); required to achieve Performance Level 'd' in parallel operation of two i-BEAMs
- IB-2-600-100-200 - IB-PDSB-E-1-2-600-2 - PDSB with contactor 1000V / 600A (1 Input / 2 Output; space for 2 DCU)
- IB-2-600-100-200 - IB-PDSB-E-1-2-1K - PDSB with contactor 1000V / 1000A (1 Input / 2 Output; space for 4 DCU)
- IB-2-600-100-200 - IB-PDSB-S-1-2-PL-6 - PDSB "safety control" (1 Input / 2 Output); achieves performance level "d" per DIN EN 13849
| Model | IB-2-600-100-200 |
|---|

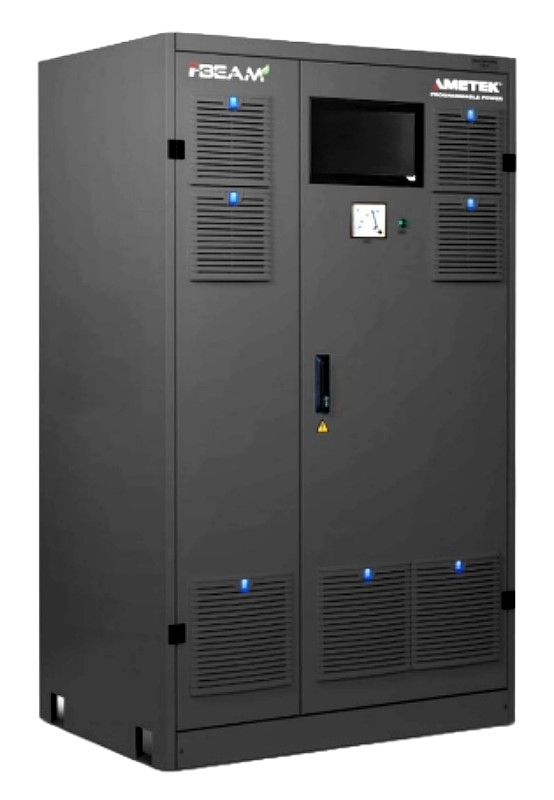

SORENSEN IB-2-600-100-200 High Performance Regenerative DC Power System
The Sorensen i-BEAM IB-2-600-100-200 High Performance Regenerative DC Power System features full DC source and sink capabilities with the power level of 100 kW. It's designed for testing today's complex, high power electronics for the automotive, energy storage, industrial, and aerospace markets in a variety of applications. The IB-2-600-100-200 features a color TFT touchscreen with a menu-driven interface for seamless control of system settings. It allows users to set and measure voltage, current, power, and internal resistance values directly through the touchscreen. Programmable voltage and cur ramps, along with the ability to store them for repeated use, enhance flexibility. The system enables setting under voltage limits to prevent deep discharge, safeguarding battery packs. Additionally, event logs provide a comprehensive history of system actions, warnings, and faults.
The Sorensen i-BEAM IB-2-600-100-200 High Performance Regenerative DC Power System platform covers test needs through the product life cycle from battery simulation, battery testing (charge/discharge), DC motor testing, electric powertrain testing, fuel cell load testing, solar panel testing, testing high power fuses, contactors, circuit breakers. The IB-2-600-100-200 Single-Channel configuration power can flow in either direction, it also features a PDU which provides a remote connection between the i-BEAM and a Device Under Test (DUT) in a test cell. The PDU is configured in a free-standing cabinet and includes shutdown and reset controls, voltmeter, status light tower and a door contact that shuts the system down if the cabinet door is opened.
Specifications for the SORENSEN IB-2-600-100-200 High Performance Regenerative DC Power System Include:
| Voltage Range | 5-600 V |
| Cur Range | ± 200 A |
| Total Power | 100 kW |
