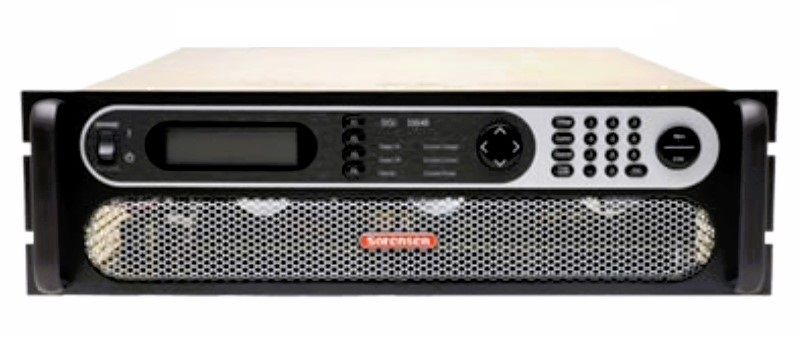

Sorensen SGA400-38
| Attributo | Valore |
|---|---|
| Tensione di Uscita | 400 V |
| Corrente di Uscita | 38 A |
| Potenza Massima | 15.200 W (15,2 kW) |
| Tipo di Alimentatore | Alimentatore DC programmabile |
| Tensione di Ingresso | 208/240 V AC, trifase |
| Regolazione della Tensione | 0 – 400 V DC |
| Regolazione della Corrente | 0 – 38 A |
| Interfacce di Controllo | GPIB, RS-232, interfaccia analogica |
| Fattore di Forma | Montaggio a rack 19", 3U |
| Protezioni Integrate | Protezione da sovratensione, sovracorrente e surriscaldamento |
Sorensen SGA400-38 Options:
- SGA400-38 - A - Control Option: Analog
- SGA400-38 - I - Control Option: Intelligent
- SGA400-38 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGA400-38 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGA400-38 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGA400-38 - 0A - Remote Control: No Option
- SGA400-38 - 1A - Remote Control: IEEE-488.2 + RS-232C
- SGA400-38 - 1C - Remote Control: Ethernet + RS-232C
- SGA400-38 - 1D - Remote Control: Isolated Analog Control
- SGA400-38 - 1E - Remote Control: Shaft Locks (SGA series only)
- SGA400-38 - 2A - Remote Control: Combined Options 1A+1D
- SGA400-38 - 2C - Remote Control: Combined Options 1A+1E (SGA Only)
- SGA400-38 - 2G - Remote Control: Combined Options 1C+1D
- SGA400-38 - 2H - Remote Control: Combined Options 1C+1E (SGA Only)
- SGA400-38 - 2J - Remote Control: Combined Options 1D+1E (SGA Only)
- SGA400-38 - 3C - Remote Control: Combined Options 1A+1D+1E (SGA Only)
- SGA400-38 - 3G - Remote Control: Combined Options 1C+1D+1E (SGA Only)
- SGA400-38 - AA - Process Option: No Option
- SGA400-38 - AB - Process Option: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGA400-38 - AJ - Modification: Front panel dust filter - factory installed - 3U unit only
- SGA400-38 - CV - Modification: 400Hz AC input @ 208 VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGA400-38 - PF - Modification: Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V)
- SGA400-38 - R - RoHS Compliant Version
| Model | SGA400-38 |
|---|
SORENSEN SGA400-38 DC Power Supply
The Sorensen SGA400-38 DC Power Supply represents the cutting-edge in high-power programmable DC power supplies. This 3U device boasts impressive specifications, offering a voltage output of 400V, a cur output of 38A, and a total power of 15 kW. It stands out with its exceptional load transient response, minimal noise, and industry-leading power density.
The Sorensen SGA400-38 model provides analog controls, making it ideal for users seeking straightforward front-panel operation or external control. It features high-performance power electronics, 10-turn potentiometers for precise voltage and cur adjustments, LED readouts, over-voltage protection, and more. In addition to its outstanding value, the SGA400-38 embodies the SG Series' key attributes, such as high power density, wide voltage range, fast load transient response, low noise, and parallel operation, making it a top choice for various applications.
Specifications for the SORENSEN SGA400-38 DC Power Supply Include:
| Total Power | 15kW |
| Max Voltage | 400 V |
| Max Current | 38 A |
| Efficiency | 87% typical at nominal line and max load |
