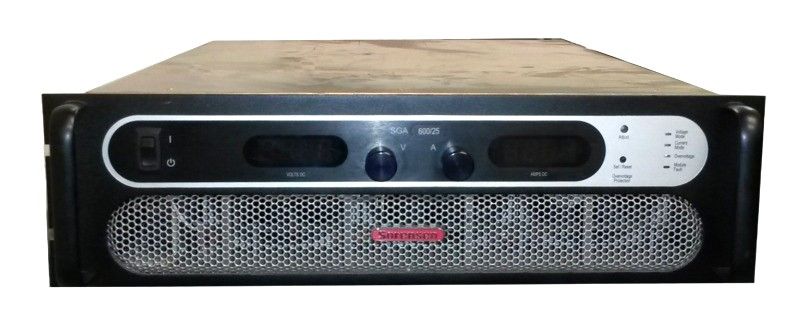

Sorensen SGA80-188
| Attributo | Valore |
|---|---|
| Tensione di Uscita | 80 V |
| Corrente di Uscita | 188 A |
| Potenza Massima | 15.000 W |
| Tensione di Ingresso | 208/240 V AC, trifase |
| Regolazione della Tensione | 0 - 80 V CC |
| Regolazione della Corrente | 0 - 188 A CC |
| Interfacce di Programmazione | GPIB, RS-232, Analogica |
| Fattore di Forma | Rack montabile, 3U |
| Raffreddamento | Raffreddamento a ventola forzata |
| Protezioni | Sovratensione, sovracorrente, surriscaldamento |
Sorensen SGA80-188 Options:
- SGA80-188 - A - Control Option: Analog
- SGA80-188 - I - Control Option: Intelligent
- SGA80-188 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGA80-188 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGA80-188 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGA80-188 - 0A - Remote Control: No Option
- SGA80-188 - 1A - Remote Control: IEEE-488.2 + RS-232C
- SGA80-188 - 1C - Remote Control: Ethernet + RS-232C
- SGA80-188 - 1D - Remote Control: Isolated Analog Control
- SGA80-188 - 1E - Remote Control: Shaft Locks (SGA series only)
- SGA80-188 - 2A - Remote Control: Combined Options 1A+1D
- SGA80-188 - 2C - Remote Control: Combined Options 1A+1E (SGA Only)
- SGA80-188 - 2G - Remote Control: Combined Options 1C+1D
- SGA80-188 - 2H - Remote Control: Combined Options 1C+1E (SGA Only)
- SGA80-188 - 2J - Remote Control: Combined Options 1D+1E (SGA Only)
- SGA80-188 - 3C - Remote Control: Combined Options 1A+1D+1E (SGA Only)
- SGA80-188 - 3G - Remote Control: Combined Options 1C+1D+1E (SGA Only)
- SGA80-188 - AA - Process Option: No Option
- SGA80-188 - AB - Process Option: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGA80-188 - AJ - Modification: Front panel dust filter - factory installed - 3U unit only
- SGA80-188 - CV - Modification: 400Hz AC input @ 208 VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGA80-188 - PF - Modification: Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)
- SGA80-188 - R - RoHS Compliant Version
| Model | SGA80-188 |
|---|
Sorensen SGA80-188 DC Power Supply
Sorensen SGA80-188 DC Power Supply represents the next generation of high-power programmable DC power supply featuring exceptional load transient response. This power supply is designed specifically for laboratory test and systems applications requiring variable DC sources with good ripple and regulation characteristics. With a full 15 kW, available in a 3U package the Sorensen SGA80-188 DC Power Supply leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.
The Sorensen SGA80-188 DC Power Supply features a variety of user interfaces, ranging from manual front €“panel control and standard non €“isolated remote analog control, to optional GPIB, Ethernet or isolated remote analog control. The SGA80-188 provides essential features like 10- turn potentiometers for setting voltage and current, 3.5 digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset. This device is parallelable to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system current.
Specifications for the Sorensen SGA80-188 DC Power Supply Include:
| Output Voltage | 80 V |
| Output Current | 188 A |
| Output Power | 15 KW |
| Efficiency | 87% |
