Sorensen SGI330-91
| Attributo | Valore |
|---|---|
| Tensione di uscita | 0 - 330 V |
| Corrente di uscita | 0 - 9 A |
| Potenza massima | 3000 W |
| Tipo di alimentazione | Corrente continua (CC) |
| Regolazione della tensione | 0,01% + 2 mV |
| Regolazione della corrente | 0,01% + 2 mA |
| Tensione di ingresso | 208/240 V CA, 50/60 Hz |
| Interfacce di comunicazione | GPIB, RS-232 |
| Dimensioni (L x A x P) | 483 x 133 x 635 mm |
| Peso | 27 kg |
Sorensen SGI330-91 Options:
- SGI330-91 - C - Input Voltage 187 / 242VAC, 3 Phase
- SGI330-91 - D - Input Voltage 342 / 440VAC, 3 Phase
- SGI330-91 - E - Input Voltage 396 / 528VAC, 3 Phase
- SGI330-91 - 0A - No Remote Control Option
- SGI330-91 - 1A - IEEE-488.2 + RS-232C
- SGI330-91 - 1C - Ethernet + RS-232C
- SGI330-91 - 1D - Isolated Analog Control
- SGI330-91 - 2A - Combined Options 1A+1D
- SGI330-91 - 2G - Combined Options 1C+1D
- SGI330-91 - AA - No Process Option
- SGI330-91 - AB - Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
- SGI330-91 - AJ - Front panel dust filter - factory installed - 3U unit only
- SGI330-91 - CV - 400Hz AC input @ 208VAC (does not carry CE, CSA or UL marks) (6U only) STD on 3U
- SGI330-91 - PF - Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)
- SGI330-91 - R - RoHS Compliant Version
| Model | SGI330-91 |
|---|

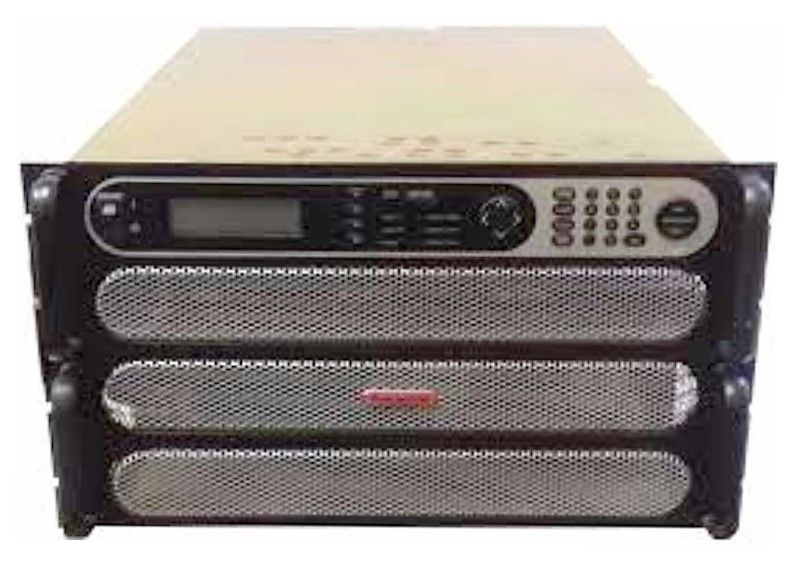

SORENSEN SGI330-91 DC Power Supply
The Sorensen SGI330-91 DC Power Supply is high-power programmable DC power supply known for its exceptional load transient response, low noise, and industry-leading power density. With a full 30 kW output in a compact 6U package, the SGI330-91 allows for efficient stacking without required clearance between units.
The Sorensen SGI330-91 features advanced intelligent control with onboard controls, sophisticated sequencing, constant power mode, and the ability to save/recall instrument settings. The SGI330-91 also includes a vacuum fluorescent graphical display, context-sensitive "soft" keys, and a front panel keyboard for simplified programming.
Specifications for the SORENSEN SGI330-91 DC Power Supply Include:
| Voltage Range | 0-330 V |
| Cur Range | 91 A |
| Total Power | 30 kW |
