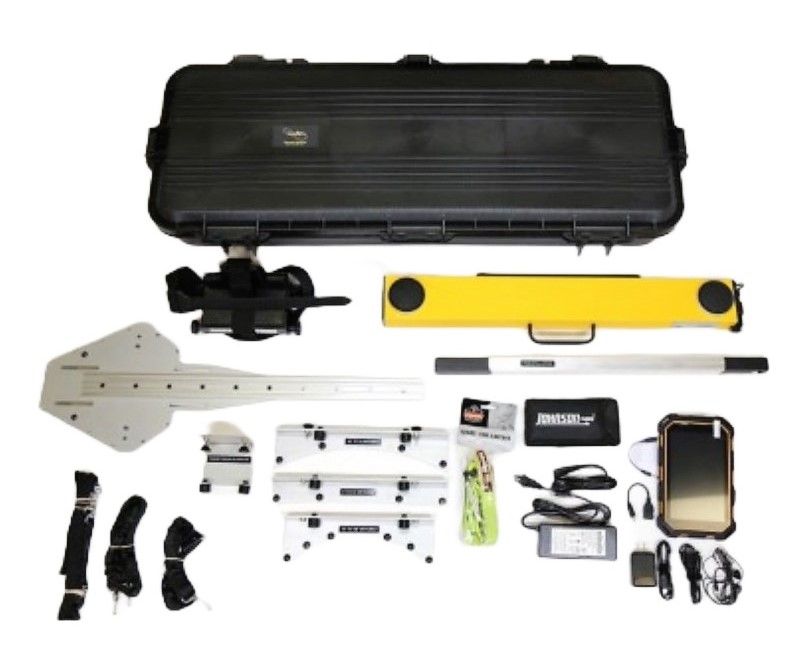

Sunsight Instruments MW KIT 1015
Sunsight Instruments MW KIT 1015 Options:
- MW KIT 1015 - P/N 2210 - Panel Antenna Upgrade Option for AAT-15 MW Kit (Includes: 2 Side Mount Kits)
- MW KIT 1015 - P/N 3300 - Azimuth Scope Kit
- MW KIT 1015 - P/N 3301 - Laser Rangefinder (Laser Tape Drop) — for antenna AGL height accuracy up to 1 foot
| Model | MW KIT 1015 |
|---|
SUNSIGHT MW KIT 1015 Microwave Path Alignment Kit (AAT-15 / MW15)
With the Sunsight MW KIT 1015 you can Path Align microwave antennas in a matter of minutes instead of hours. Alignment of microwave links has never been faster or easier. Learn more about our all-inclusive kit for fast alignment of wireless backhaul links. This new microwave alignment system can be used to quickly, simply and accurately to align point-to-point, short-haul and long-haul links. The system automatically calculates exact alignment requirements in real-time and provides the user simple targets for pathing the link. No additional software, post processing, or cables are required.
Features of the Sunsight MW KIT 1015 Microwave Path Aligner include:
- Align Microwave backhaul antennas in minutes instead of hours or even days
- Each all inclusive kit includes two alignment units to allow simultaneous alignment of both sides of the link in minutes
- Azimuth, tilt, roll, height, and location (Lat/Long) captured into report for customer and government communication agency records
- No additional software, post processing, or cables are required
- Proven to align backhaul antenna links regardless of distance
- Powering down or removal of radio not needed for pathing microwave link
- Units can also be used independently for RF panel antenna alignment
Specifications of the Sunsight MW15 / 1015 include:
| Part Number | MW KIT 1015 |
| Accuracy | AAT-15 |
|---|---|
| Azimuth R99* | .45 ° |
| Azimuth RMS* | .15 ° |
| Tilt/Roll | .1 ° |
| Position | 30 cm w/SBAS |
| Altitude With LRF | 30 cm (AGL) |
| GPS Receiver | 540 channel |
| Satellite Constellations | GPS and GLONASS |
| Battery | |
| Type | LiFePO4 |
| Life | 8-9 hrs |
| Charge Time | 1.5 hrs |
| Charger | 100-240VAC |
| Weight | |
| Unit | 4.5 lbs |
| Mount | 4 lbs |
| Unit Dimensions | 22.7"x3.8"x1.7" |
| 57.6cmx9.6cmx4.3cm | |
| Environment and Connectivity | |
| Op Temp | -40 °C to 70 °C |
| Storage Temp | -40 °C to 85 °C |
| Humidity | 95% |
| Communications | 802.11b,g,n |
| Output | PDF, CSV, HTML, Proprietary encrypted format |
| Memory | 8 GB |
| Industry Certifications | CE and FCC |
*RMS or root mean square is 1 sigma accuracy specification, R99 is 3 sigma (99.7%).
