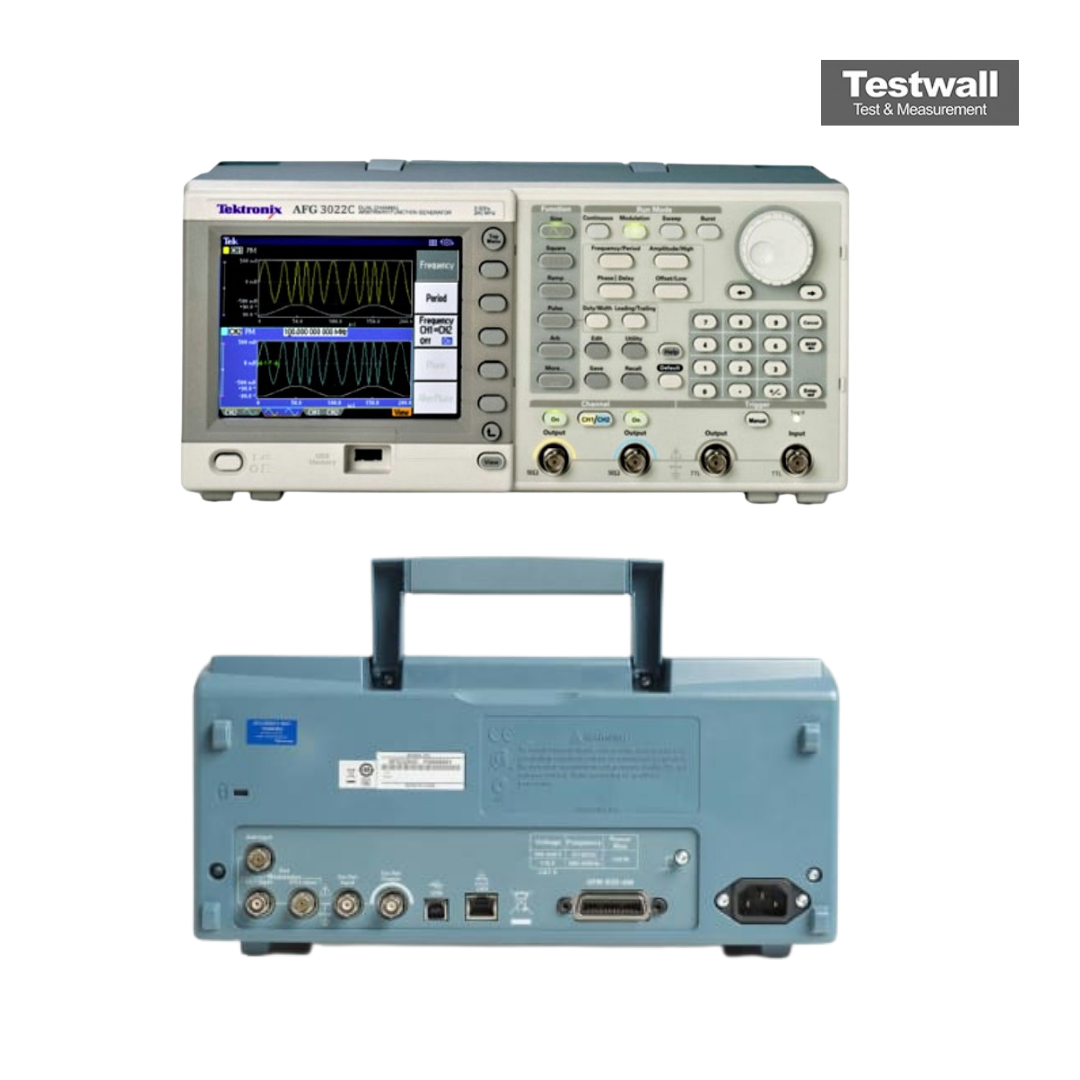

Tektronix AFG3022C

Tektronix AFG3022C  Tektronix AFG3022C Arbitrary Waveform / Function Generator, 25 MHz, 2 Ch. The Tektronix AFG3022C has the 2-channel, 25 MHz you can choose from 12 diffe standard waveforms. Arbitrary waveforms can be generated up to 128 K in length at high sampling rates. On pulse waveforms, leading and trailing edge time can be set independently. External signals can be connected and added to the output signal. The Tektronix AFG3022C is a dual-channel model, and can generate two identical or completely diffe signals. All instruments feature a highly stable time base with only ±1 ppm drift per year.Color TFT LCD screen on shows all relevant waveform parameters and graphical wave shape at a single glance. This gives full confidence in the signal settings and lets you focus on the task at hand. Shortcut keys provide direct access to frequently used functions and parameters. Others can be selected conveniently through clearly structured menus. This reduces the time needed for learning and relearning how to use the instrument. With this PC software waveforms can be seamlessly imported from any Tektronix Oscilloscope, or defined by standard functions, equation editor, and waveform math. Features and Specifications of the Tektronix AFG3022C includes:

25 MHz Sine Waveform, 2 Channels

14 bits, 250 MS/s Arbitrary Waveforms

Amplitude: 10 V_pp into 50 Ω Loads

5.6 in. Color TFT LCD Display

Multi-language and Intuitive Operation Saves Setup Time

Pulse Waveform with Variable Edge Times

AM, FM, PM, FSK, PWM

Sweep and Burst

Dual-channel; Saves Cost and Bench Space

USB Connector on Front Panel for Waveform Storage on Memory Device

USB, GPIB, and LAN

LabVIEW and LabWindows/IVI-C Drivers

Three-year warranty
