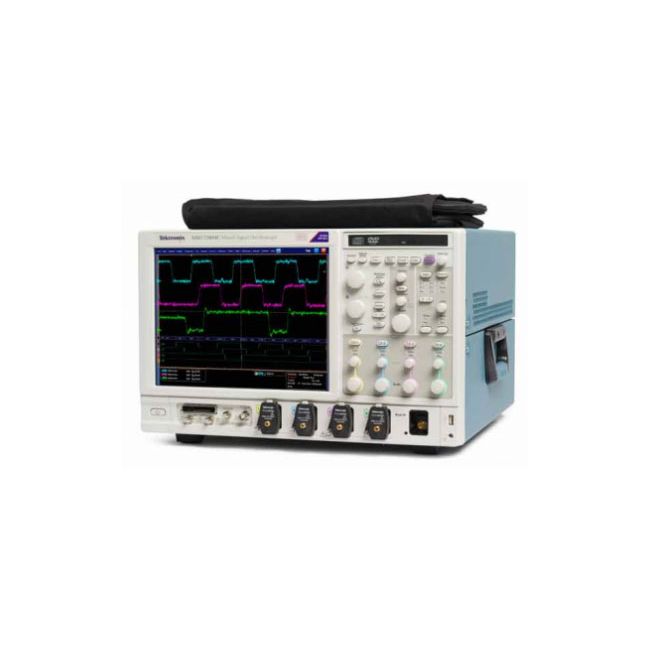

Tektronix DPO72304DX Product Overview
Features & Benefits
- Analog Bandwidth: 23 GHz
- Sample Rate: 50 GS/s to 100 GS/s
- Record length: 31.25M points to 1 G points
- 4 Analog Channels
- Four-channel Simultaneous Performance
- Unique iCapture® capability enables viewing analog characteristics of digital channels with single probe connection
- 6.25 GB/s Real-time Serial Trigger assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
- Application support for high-speed serial industry standards, wideband RF, power supplies, and memory
- Superior signal integrity and excellent signal-to-noise ratio
- Pinpoint® triggering minimizes time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
- Visual Trigger precisely qualify triggers and find unique events in complex waveforms
- USB host ports on both front and rear panel
- Integrated 10/100 Ethernet port for network connection
- Video Out port to export the oscilloscope display to a monitor or projector
Application Support
- High-speed serial industry standards compliance
- SignalVU® RF and vector signal analysis
- DDR memory bus analysis
Applications
- Design verification including signal integrity, jitter, and timing analysis
- Design characterization for high-speed, sophisticated designs
- Certification testing of serial data streams for industry standards
- Memory bus analysis and debug
- Prototype turn-on and power supply verification
- Research and investigation of transient phenomena
- Production testing of complex systems
- Spectral analysis of transient or wide-bandwidth RF signals
More Information
| Model | DPO72304DX |
|---|
