Tektronix TG8000
| Attributo | Valore |
|---|---|
| Numero di uscite | Fino a 6 uscite configurabili |
| Formati di segnale supportati | SD, HD, 3G-SDI, HDTV, SDTV, segnali analogici compositi |
| Frequenza di riferimento | Tri-level sync e black burst per sincronizzazione esterna |
| Moduli espandibili | Architettura modulare con slot per moduli intercambiabili (es. ATG7, BG7, DVG7, AWVG7) |
| Precisione del clock interno | ±0,5 ppm con oscillatore interno ad alta stabilità |
| Interfaccia di controllo | Ethernet (10/100Base-T), SNMP, interfaccia web integrata e controllo frontale |
| Tensione di alimentazione | 100–240 V CA, 50/60 Hz, alimentazione ridondante opzionale |
| Dimensioni (formato rack) | 2U, compatibile con rack standard da 19 pollici |
| Temperatura operativa | Da 0 °C a +40 °C |
| Conformità agli standard | SMPTE 259M, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.709 |
Tektronix TG8000 Options:
- TG8000 - Opt. 88 - Module installation (applies to mainframe and all modules)
- TG8000 - Opt. D1 - Calibration data report in English/Japanese
- TG8000 - Opt. A0 - North America power plug (115 V, 60 Hz)
- TG8000 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- TG8000 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- TG8000 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- TG8000 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- TG8000 - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- TG8000 - Opt. A10 - China power plug (50 Hz)
- TG8000 - Opt. 11 - India power plug (50 Hz) – No lock mechanism
- TG8000 - Opt. 12 - Brazil power plug (60 Hz) – No lock mechanism
- TG8000 - Opt. A99 - No power cord
- TG8000 - Opt. C3 - Calibration Service 3 Years
- TG8000 - Opt. C5 - Calibration Service 5 Years
- TG8000 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- TG8000 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- TG8000 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- TG8000 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- TG8000 - Opt. R3 - Repair Service 3 Years (including warranty)
- TG8000 - Opt. R5 - Repair Service 5 Years (including warranty)
- TG8UP - Opt. PW - Replacement power supply module for the TG8000 mainframe
- BG7 - Opt. CB - Add NTSC/PAL color bar (must be added at time of order; option cannot be added later)
- DVG7 - Opt. BK - Add SDI black outputs (must be added at time of order; option cannot be added later)
- HDVG7 - Opt. BK - Add black outputs (must be added at time of order; option cannot be added later)
- SDI7 - Opt. 3G - Add 3G-SDI support
- SDI7 - Opt. DBT - Add embedded Dolby E audio test signal generation capability
- SDI7UP - Opt. 3G - Add 3G-SDI support (field upgrade for SDI7 module)
- SDI7UP - Opt. DBT - Add embedded Dolby E audio test signal generation capability (field upgrade for SDI7 module)
| Model | TG8000 |
|---|

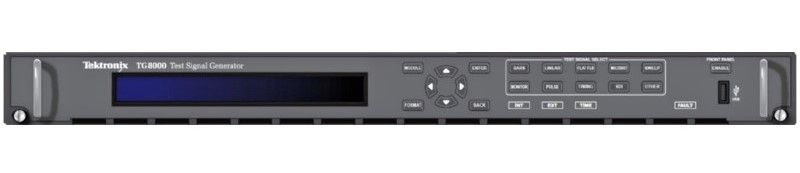

Tektronix TG8000 Multi format Test Signal Generator Mainframe
The Tektronix TG8000 mainframe is a modular system, accommodating up to four user-changeable generator modules and one power supply module in a fullwidth 1RU form factor. A total of 12 diffe modules are available for the Tektronix TG8000, covering a wide range of interfaces and functions such as GPS synchronization and genlock, SD/HD/3G-SDI test signal generation, composite and component analog test signal generation, and audio test signal generation. The Tektronix TG8000 mainframe has a high-precision oscillator for master operation, or for stable holdover operation when the genlock or GPS reference is interrupted. A 10/100/1000BASE-T Ethernet interface provides connectivity to the local network for remote operation, test pattern download, and an NTP server (when the GPS7 module is present). A General Purpose Input/Output (GPIO) interface is available to recall one of seven user-configured presets and to report system alarms. The front-panel USB port can be used to easily download user-created test patterns and system preset information, and can be used for system upgrades.
Features and Specifications of the Tektronix TG8000 includes:
- Multiformat analog and digital test signal generation
- Ideal channel configuration and performance to support reference generator needs
- Modular configurable platform
- Stay GenLock ™ €“ Unique, robust Genlock mode provides stable synchronization signals for digital and traditional broadcast facilities
- Sync pulse generator and test signal generator for post production and broadcast facilities
- Test signal generator for research and development
- Equipment design and maintenance
