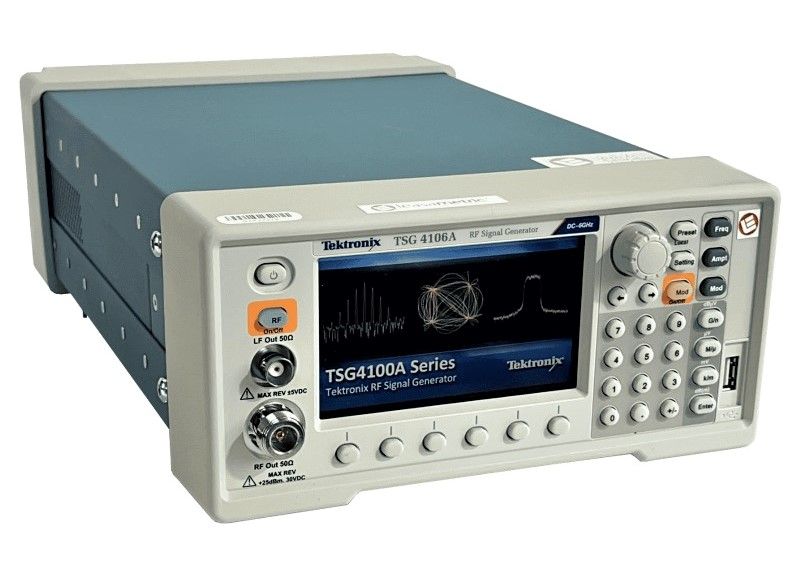

Tektronix TSG4104A
| Attributo | Valore |
|---|---|
| Frequenza massima | 4 GHz |
| Frequenza minima | 1 MHz |
| Risoluzione di frequenza | 1 Hz |
| Potenza di uscita massima | +13 dBm |
| Potenza di uscita minima | -110 dBm |
| Modulazioni supportate | AM, FM, PM, Modulazione a impulsi |
| Purezza spettrale (armonica) | -30 dBc (tipico) |
| Interfacce di connettività | USB, LAN (LXI), GPIB |
| Riferimento di frequenza | Oscillatore interno OCXO / Ingresso/uscita riferimento esterno 10 MHz |
| Alimentazione | 100-240 V CA, 50/60 Hz |
Tektronix TSG4104A Options:
- TSG4104A - M00 - Instrument with oven-controlled crystal oscillator (OCXO)
- TSG4104A - M01 - Instrument with voltage-controlled crystal oscillator (VCXO)
- TSG4104A - GPIB - Adds GPIB interface
- TSG4104A - E1 - Instrument with oven-controlled crystal oscillator (OCXO) time-base and GPIB interface (North America only)
- TSG4104A - TSG4100A-RM1 - Single rack mount kit (can be ordered separately)
- TSG4104A - TSG4100A-RM2 - Dual rack mount kit (can be ordered separately)
- TSG4104A - TSG4100A-ATT - 30 dB, 5 W RF attenuator up to 6 GHz
- TSG4104A - D1 - A list of performance verification test results
- TSG4104A - VM00 - Basic vector modulation package with internal 6 MHz modulation bandwidth
- TSG4104A - VM01 - GSM modulation (requires Option VM00)
- TSG4104A - VM02 - GSM EDGE modulation (requires Option VM00)
- TSG4104A - VM03 - W-CDMA modulation (requires Option VM00)
- TSG4104A - VM04 - APCO-25 modulation (requires Option VM00)
- TSG4104A - VM05 - DECT modulation (requires Option VM00)
- TSG4104A - VM06 - NADC modulation (requires Option VM00)
- TSG4104A - VM07 - PDC modulation (requires Option VM00)
- TSG4104A - VM08 - TETRA modulation (requires Option VM00)
- TSG4104A - VM10 - Audio Clip (analog AM and FM)
- TSG4104A - EIQ - External 200 MHz modulation bandwidth (requires Option VM00)
- TSG4104A - A0 - North America power plug (115 V, 60 Hz)
- TSG4104A - A1 - Universal Euro power plug (220 V, 50 Hz)
- TSG4104A - A2 - United Kingdom power plug (240 V, 50 Hz)
- TSG4104A - A3 - Australia power plug (240 V, 50 Hz)
- TSG4104A - A5 - Switzerland power plug (220 V, 50 Hz)
- TSG4104A - A6 - Japan power plug (100 V, 50/60 Hz)
- TSG4104A - A10 - China power plug (50 Hz)
- TSG4104A - A11 - India power plug (50 Hz)
- TSG4104A - A12 - Brazil power plug (60 Hz)
- TSG4104A - A99 - No power cord
- TSG4104A - L0 - English manual (printed version)
- TSG4104A - C3 - Calibration Service 3 Years
- TSG4104A - C5 - Calibration Service 5 Years
- TSG4104A - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TSG4104A - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TSG4104A - R5 - Repair Service 5 Years (including warranty)
| Model | TSG4104A |
|---|
TEKTRONIX TSG4104A RF Vector Signal Generator
The Tektronix TSG4104A RF Vector Signal Generator offers mid-range performance and up to 200 MHz modulation bandwidth. They use a new technique to provide spurious free outputs with low phase noise (-113 dBc/Hz at 20 kHz offset from 1 GHz carrier) and extraordinary frequency resolution (1 μHz at any frequency). The TSG4104A comes standard with analog modulation, and upgrades allow for easy transition from analog to more advanced vector and digital modulation capabilities. Modes include amplitude modulation (AM), frequency modulation (FM), phase modulation (ΦM), and pulse modulation. There is an internal modulation source as well as an external modulation input.
The TSG4104A RF Vector Signal Generator builds on this performance by adding full support for vector signal modulation on RF carriers between 400 MHz and 4.0 GHz. It features a dual arbitrary waveform generator operating at 125 MHz for baseband signal generation. The generator has built-in support for the most common vector modulation schemes. The Tektronix TSG4104A have cascaded stages of amplifiers and digital attenuators to drive the RF output. Five stages can provide up to +25 dB of gain to -130 dB of attenuation in 156 digitally controlled steps. Remote operation is supported with RS-232, LAN, and GPIB interfaces. All instrument functions can be controlled and read over any of the interfaces.
Specifications for the TEKTRONIX TSG4104A RF Vector Signal Generator Include:
| Frequency (BNC Output) | DC to 62.5 MHz |
| Frequency (N-Type Output) | 950 kHz to 4.0 GHz |
| Frequency resolution | 1 μHz |
| Amplitude resolution | 0.01 dBm |
