Test Equity 1007C
| Attributo | Valore |
|---|---|
| Intervallo di temperatura | da -18°C a +177°C (da 0°F a 350°F) |
| Stabilità della temperatura | ±0,1°C |
| Uniformità della temperatura | ±0,3°C |
| Volume interno della camera | 0,03 m³ (1,0 piedi cubi) |
| Tempo di raffreddamento | Da +177°C a 0°C in circa 45 minuti |
| Tempo di riscaldamento | Da ambiente a +177°C in circa 20 minuti |
| Alimentazione elettrica | 115 V CA, 60 Hz, 15 A |
| Dimensioni esterne (L x P x A) | approximately 66 cm x 71 cm x 91 cm |
| Tipo di refrigerante | R-404A (privo di CFC) |
| Controllore di temperatura | Controllore digitale programmabile con display LCD |
Test Equity 1007C Options:
- 1007C - Optional - Watlow F4T Touch Screen Controller with RS-232, Ethernet interface, 4.3" color graphic touch screen
- 1007C - Optional - Honeywell DR4300 Series Chart Recorder - One pen, 10" circular chart, mounts in lower front door
| Model | 1007C |
|---|

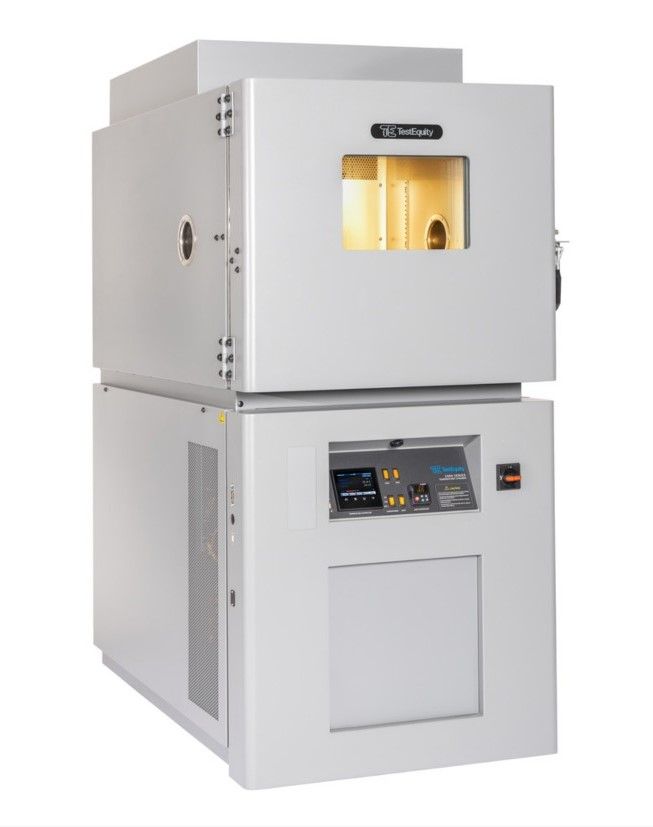

TEST EQUITY 1007C
The Test Equity 1007C Temperature Chamber allows up to 256 steps to be programmed into as many as 40 namable profiles. The context sensitive information key and guided steps make profile programming fast and easy. A four line backlit LCD displays programming, setup, operating and help information. A large LED readout indicates the actual chamber temperature with 0.1 ° resolution. Internal logic provides refrigeration compressor control for responsive and reliable performance. The Test Equity 1007C includes two alarms and seven event outputs to control remote devices. RS-232C communications is also included. GPIB, Ethernet and analog retransmit are available as options.
Features and specifications of the 1007C Environmental Chamber include:
- -73 °C to +175 °C Temperature Range (opt. to +205 °C)
- 7 Cu Ft Workspace, 24 W x 21 H x 24 D (198 Liters)
- Programmable Temperature Controller
- RS-232 Interface (Opt. GPIB and Ethernet)
- High/Low Limit Control and Alarm
- Viewing Window & Interior Light
- 4" Access Ports on Left & Right Side
- Non-CFC Cascade Refrigeration
