Test Equity 1007H
| Attributo | Valore |
|---|---|
| Intervallo di Temperatura | da -10°C a +70°C |
| Stabilità della Temperatura | ±0,1°C |
| Uniformità della Temperatura | ±0,5°C |
| Volume Interno | 34 litri |
| Tensione di Alimentazione | 115V / 60Hz |
| Consumo Energetico | 900W |
| Tipo di Controllo | Microprocessore PID |
| Display | Display digitale LCD |
| Dimensioni Esterne (L x P x A) | 635 mm x 635 mm x 864 mm |
| Peso | 68 kg |
Test Equity 1007H Options:
- 1007H - GN2 Purge - GN2 (Nitrogen) Purge option extending humidity range to 5% to 95% with dry bulb range of +10°C to +85°C
- 1007H - Dry Air Purge - Dry Air Purge option extending humidity range to 5% to 95% with dry bulb range of +10°C to +85°C
- 1007H - DR4300 - Optional Honeywell DR4300 Series chart recorder, one pen, 10" circular chart, mounts in lower front door
- 1007H - Water Recirculation System - Optional water recirculation system providing a reliable supply of filtered water for the humidity system, for installations where a water line and drain are not available
| Model | 1007H |
|---|

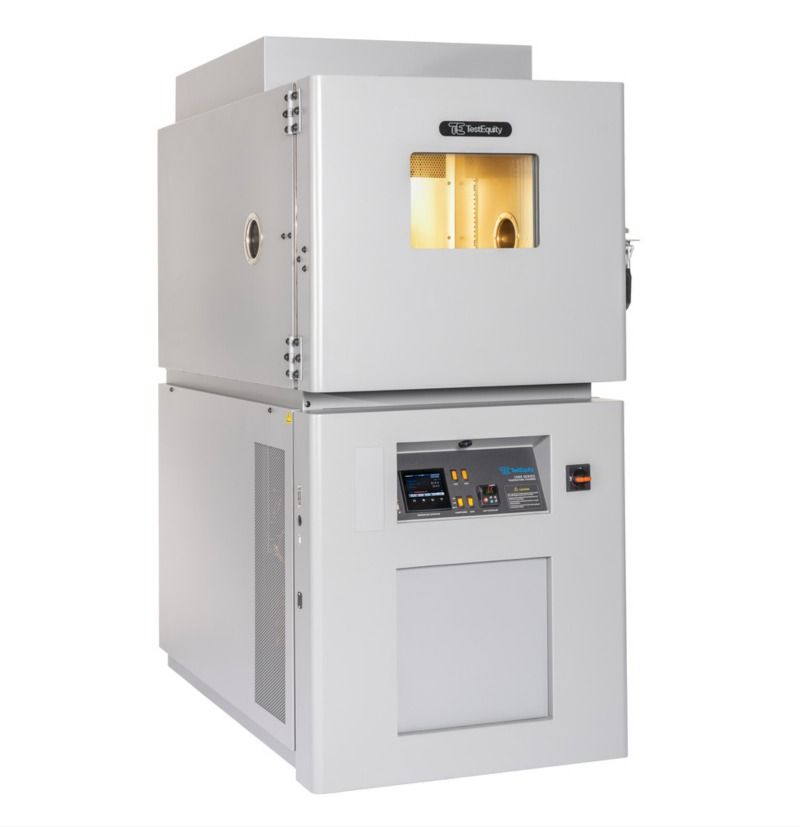

TEST EQUITY 1007H Temperature/Humidity Chamber
The Test Equity 1007H Temperature and humidity chamber has 7 cubic feet of interior space, and can simulate both temperature and humidity. Controlled humidity from 10% RH to 95% RH can be maintained within the dry-bulb temperature range of +10 °C to +85 °C, limited by a 6 °C dew point. This chamber is designed to be easily configured for operation from a Single Phase or Three Phase power source, and either 208 V / 60 Hz or 230 V / 60 Hz. The F4 Controller controls the temperature of the chamber. It can function as either a single set point controller or as a programmable profile controller. The F4 Controller automatically turns the refrigeration system on or off based on the demand for cooling.
Up to 256 steps can be programmed into as many as 40 nameable profiles. The context sensitive information key and guided steps make profile programming fast and easy. A four-line backlit LCD displays programming, setup, operating and help information. A large LED readout on the Test Equity 1007H indicates the actual chamber temperature with 0.1 ° resolution. Internal logic provides refrigeration compressor control for responsive and reliable performance. Includes two alarms and seven event outputs to control remote devices. RS-232C communications is also included. GPIB, Ethernet and analog retransmit are available as options.
Specifications for the TEST EQUITY 1007H Temperature/Humidity Chamber Include:
- Temperature -73 °C to +175 °C
- Humidity 10% to 95% RH.
- 7 Cu Ft Workspace, 24 W x 21 H x 24 D (198 liters)
- Your choice of the NEW F4T Touch Screen Controller or the Original F4 Controller
- High/Low Limit Control and Alarm
- Viewing Window & Interior Light
- 4" Access Ports on Left & Right Side
- Non-CFC Cascade Refrigeration
