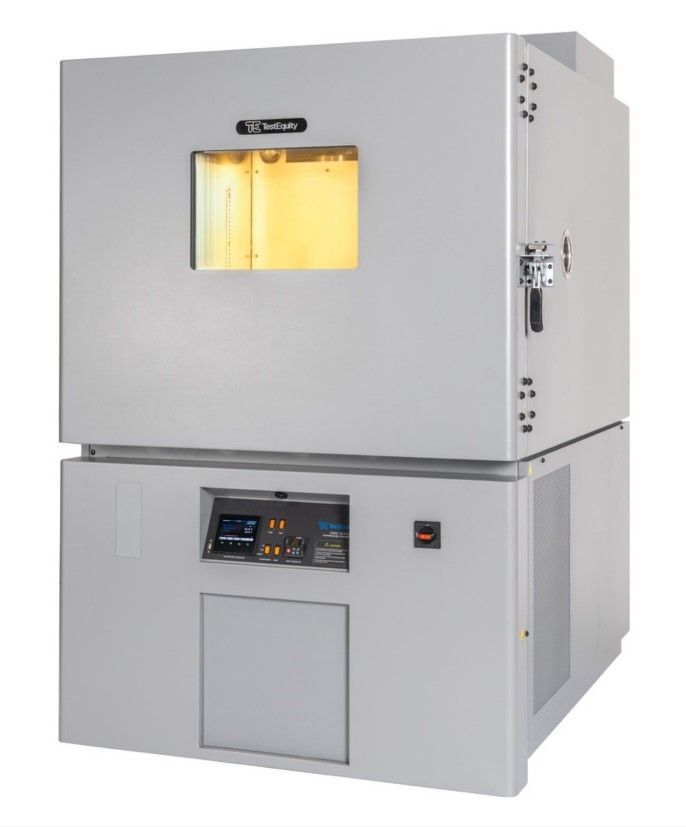

Test Equity 1027S
| Attributo | Valore |
|---|---|
| Intervallo di temperatura | da -73°C a +177°C |
| Stabilità della temperatura | ±0,1°C |
| Uniformità della temperatura | ±0,3°C |
| Volume interno | 1,0 piedi cubi (28,3 litri) |
| Tensione di alimentazione | 208-230 V CA, 60 Hz |
| Consumo energetico | 2800 W |
| Tipo di raffreddamento | Meccanico a cascata |
| Dimensioni esterne (L x P x A) | 63,5 cm x 76,2 cm x 91,4 cm |
| Peso | approximately 181 kg |
| Controllo | Controllore digitale a microprocessore con display LCD |
Test Equity 1027S Options:
- 1027S - Chart Recorder - (Optional) Honeywell DR4300 Series. One pen, 10" circular chart. Mounts in lower front door.
| Model | 1027S |
|---|
TEST EQUITY 1027S
The Test Equity 1027S Temperature Chamber allows up to 256 steps to be programmed into as many as 40 namable profiles. The context sensitive information key and guided steps make profile programming fast and easy. A four line backlit LCD displays programming, setup, operating and help information. A large LED readout indicates the actual chamber temperature with 0.1 ° resolution. Internal logic provides refrigeration compressor control for responsive and reliable performance. The Test Equity 1027S includes two alarms and seven event outputs to control remote devices. RS-232C communications is also included. GPIB, Ethernet and analog retransmit are available as options.
Features and specifications of the 1027S Environmental Chamber include:
- -35 °C to +175 °C Temperature Range (opt. to +205 °C)
- 27 Cu Ft Workspace, 40 W x 32 H x 36.5 D (765 Liters)
- Programmable Temperature Controller
- RS-232 Interface (Opt. GPIB and Ethernet)
- High/Low Limit Control and Alarm
- Viewing Window & Interior Light
- 4" Access Ports on Left & Right Side
- Non-CFC Single Stage Refrigeration
