Vectawave VBA400-260
| Attributo | Valore |
|---|---|
| Intervallo di frequenza | 400 MHz – 2600 MHz |
| Potenza di uscita massima | 400 W |
| Guadagno tipico | ≥ 50 dB |
| Potenza di ingresso massima | 0 dBm |
| Impedenza | 50 Ohm |
| Connettori RF | N-Type femmina |
| Alimentazione | 220 – 240 V CA, 50/60 Hz |
| Classe operativa | Classe AB |
| Temperatura operativa | 0 °C – 40 °C |
| Formato | Rack 19", 3U |
Vectawave VBA400-260 Options:
- VBA400-260 - BENCH - Bench model with front panel mounted input/output connectors
- VBA400-260 - RACK-FRONT - Rack mountable with front panel mounted input/output connectors
- VBA400-260 - RACK-REAR - Rack mountable with rear panel mounted input/output connectors
| Model | VBA400-260 |
|---|

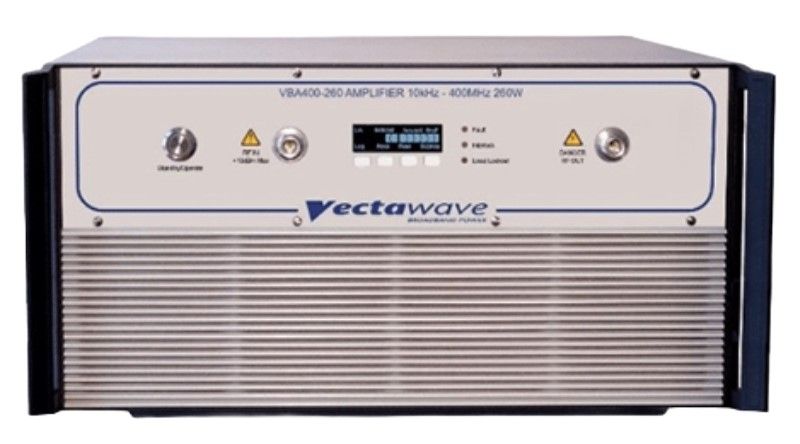

VECTAWAVE VBA400-260 High Power Amplifier
The Vectawave VBA400-260 High Power Amplifier spaning frequency of 10kHz to 400MHz, designed specifically for automotive, military and aerospace BCI and EMC applications. This amplifier utilizes robust push-pull MOSFET technology to ensure exceptional even order harmonic suppression. Operating in class A, it offers minimal distortion and a remarkable tolerance for 100% mismatch, rendering fold-back protection unnecessary. These attributes make the Vectawave VBA400-260 an excellent choice for the most demanding transducer needs, emphasizing its robustness and adaptability for general linear power requirements.
Specifications for the VECTAWAVE VBA400-260 High Power Amplifier Include:
| Frequency Range | 10 kHz to 400 MHz |
| Output Power at 3dB Gain Compression | 260 W Min (>300 W typical) |
| Output Power Harmonics | Better than -20dBc @ rated linear power |
| Output Impedence | 50 Ohms |
