Yokogawa AQ6370D-22
Optical Spectrum Analyzer
600 nm - 1700 nm Intervallo di lunghezza d'onda
0,02 nm Risoluzione
±0,01 nm Precisione della lunghezza d'onda
-90 dBm - +20 dBm Intervallo di misura del livello
±0,4 dB Precisione del livello
| Attributo | Valore |
|---|---|
| Intervallo di lunghezza d'onda | 600 nm - 1700 nm |
| Risoluzione | 0,02 nm |
| Precisione della lunghezza d'onda | ±0,01 nm |
| Intervallo di misura del livello | -90 dBm - +20 dBm |
| Precisione del livello | ±0,4 dB |
| Dinamica | 78 dB |
| Connettore di ingresso | FC/PC (adattatore intercambiabile) |
| Interfacce di comunicazione | USB, LAN (Ethernet), GP-IB |
| Display | Display a colori TFT da 8,4 pollici |
| Alimentazione | 100 V - 240 V CA, 50/60 Hz |
Yokogawa AQ6370D-22 Options:
- AQ6370D-22 - -L0 - Without light source
- AQ6370D-22 - -L1 - Wavelength reference source
- AQ6370D-22 - -D - Power cord, UL/CSA standard
- AQ6370D-22 - -F - Power cord, VDE standard
- AQ6370D-22 - -R - Power cord, AS standard
- AQ6370D-22 - -H - Power cord, GB standard
- AQ6370D-22 - -Q - Power cord, BS standard
- AQ6370D-22 - -N - Power cord, NBR standard
- AQ6370D-22 - /FC - AQ9447 (FC) Connector Adapter for Optical Input
- AQ6370D-22 - /SC - AQ9447 (SC) Connector Adapter for Optical Input
- AQ6370D-22 - /RFC - AQ9441 (FC) Universal Adapter for Calibration Output
- AQ6370D-22 - /RSC - AQ9441 (SC) Universal Adapter for Calibration Output
| Model | AQ6370D-22 |
|---|

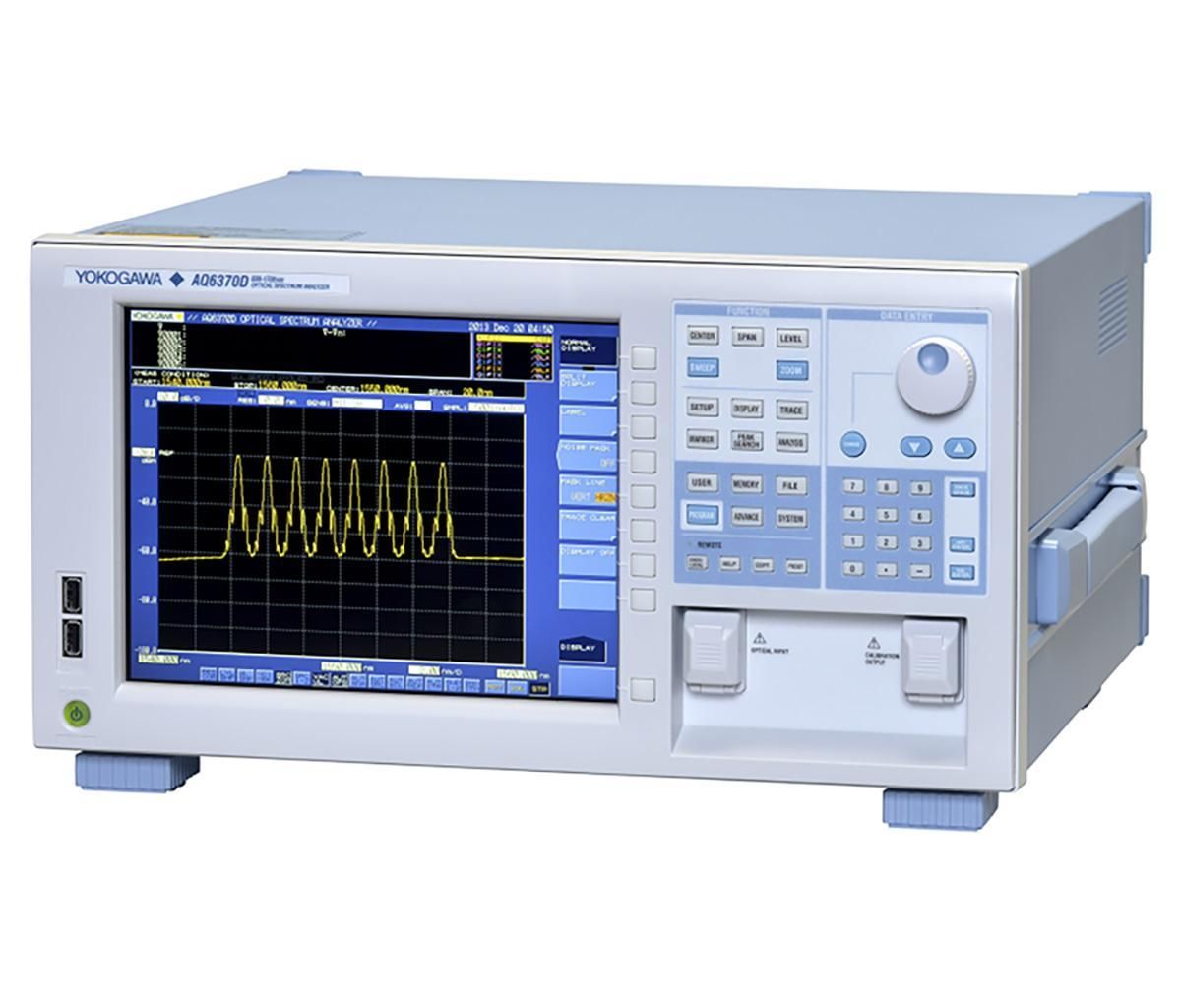

The Yokogawa AQ6370D-22 is an optical spectrum analyzer, which is well-suited for both general purpose applications as well as telecommunications. The AQ6370D-22 has a unique free space input design, which enables testing of both DWDM single mode and VCSEL sourced multi-mode fibers in a single model.
Some of the major specifications of the Yokogawa AQ6370D-22 optical spectrum analyzer are:
- Wavelength range: 600 to 1700 nm
- Wavelength accuracy: /-0.01 nm (high-performance model)
- Wavelength resolution setting: 0.02 to 2 nm
- Level range: 20 to -90 dBm
- Close-in dynamic range: 78 dB typ. (peak /-1.0 nm, high-performance model)
- Emission spectrum evaluation of optical transceivers and LD modules
- OSNR measurement of WDM transmission signals
- Optical amplifier (EDFA) measurement
