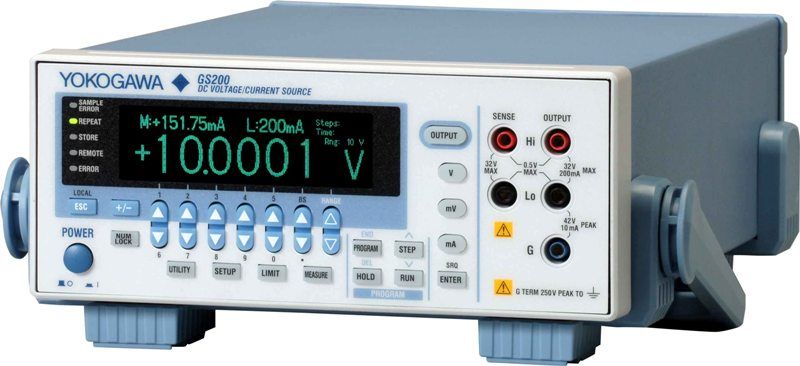

Yokogawa GS200
| Attributo | Valore |
|---|---|
| Intervallo di tensione in uscita | ±10 mV, ±100 mV, ±1 V, ±10 V, ±30 V |
| Intervallo di corrente in uscita | ±1 mA, ±10 mA, ±100 mA, ±200 mA |
| Risoluzione di tensione | Fino a 100 nV (intervallo 10 mV) |
| Risoluzione di corrente | Fino a 10 nA (intervallo 1 mA) |
| Accuratezza di tensione | ±0,016% della lettura ±0,004% del fondo scala |
| Accuratezza di corrente | ±0,05% della lettura ±0,005% del fondo scala |
| Funzione di monitoraggio | Monitoraggio integrato di tensione e corrente con accuratezza di misura fino a ±0,015% |
| Interfacce di comunicazione | USB, GP-IB (opzionale), RS-232 (opzionale), Ethernet (opzionale) |
| Funzione di programmazione | Generazione di forme d'onda programmabili con funzione sweep e step |
| Alimentazione e dimensioni | 100–240 V CA, 50/60 Hz; dimensioni 214 (L) × 88 (H) × 340 (P) mm |
Yokogawa GS200 Options:
- GS210 - -1 - Supply Voltage: 100 VAC, 50/60 Hz
- GS210 - -4 - Supply Voltage: 120 VAC, 50/60 Hz
- GS210 - -7 - Supply Voltage: 230 VAC, 50/60 Hz
- GS211 - -1 - Supply Voltage: 100 VAC, 50/60 Hz
- GS211 - -4 - Supply Voltage: 120 VAC, 50/60 Hz
- GS211 - -7 - Supply Voltage: 230 VAC, 50/60 Hz
- GS200 - -D - Power Cord: UL/CSA standard
- GS200 - -F - Power Cord: VDE standard
- GS200 - -R - Power Cord: AS standard
- GS200 - -Q - Power Cord: BS standard
- GS200 - -H - Power Cord: GB standard
- GS200 - /MON - Voltage and current monitoring
- GS200 - /C10 - Ethernet interface
| Model | GS200 |
|---|
YOKOGAWA GS200 DC Voltage and Cur Source
The Yokogawa GS200 DC Voltage and Cur Source is a high-performance instrument that offers engineers high accuracy, high resolution, and exceptional stability with an incredibly low noise floor. This enables precise development of electronic components with confidence. The GS200 generates highly accurate voltage and cur signals required for various applications, acting not only as a source but also as a constant load. Its monitoring feature provides data logging capability, making it a valuable tool for research and equipment development.
With a user-friendly design, the Yokogawa GS200 DC Voltage and Cur Source is equipped with individual up/down digit keys for dynamic and fast changes in output, enabling precise threshold level detection and I-V characteristic measurements. Its high-resolution dot matrix VFD display provides a comprehensive view, and the soft key menus ensure easy operation. The GS200 can store up to 10,000 steps of output values with customizable settings, and its internal memory serves as a USB mass storage device when connected to a PC, allowing easy data transfer and manipulation. The GS200 features 5 1/2-digit, ±120000-count output resolution for both voltage and cur sources, offering superb linearity and extremely low noise levels down to μV. It supports four-quadrant operation, acting as a cur source or sink, making it ideal for highly accurate constant-cur electronic load applications.
Specifications for the YOKOGAWA GS200 DC Voltage and Cur Source Include:
| Max Voltage | 30 V |
| Max Current | 200 mA |
| Voltage Resolution | 100 nV |
| Cur Resolution | 10 nA |
