Kalmus

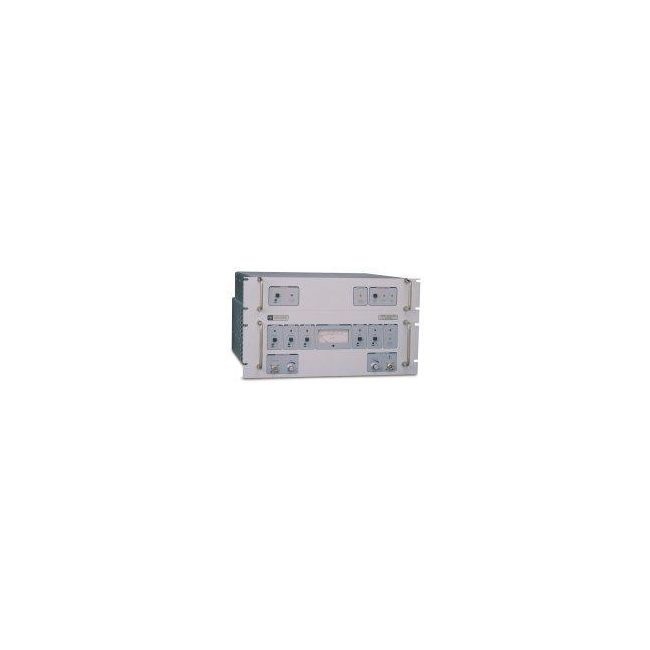

Kalmus LA100UF
Amplifier 100 MHz - 500 MHz 100W
10 kHz – 100 MHz Frequency Range
100 Watts Output Power
50 dB minimum Gain
50 Ohms Input Impedance
50 Ohms Output Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz – 100 MHz |
| Output Power | 100 Watts |
| Gain | 50 dB minimum |
| Input Impedance | 50 Ohms |
| Output Impedance | 50 Ohms |
| Input Power Required | 105–125 VAC / 210–250 VAC, 50/60 Hz |
| Cooling Method | Forced Air (Internal Fan) |
| Harmonics and Spurious | -10 dBc or better |
| Connectors | Type N Female (Input and Output) |
| Form Factor | Benchtop / Rack Mountable |
Kalmus LA100UF Options:
- LA100UF - Option 110-1E - GPIB IEEE-488, RS232 and Ethernet Remote Control
- LA100UF - Option 110-2 - GPIB IEEE-488 and RS 422 Remote Control
- LA100UF - Option 110-3 - GPIB IEEE-488 and RS 485 Remote Control
- LA100UF - Option 113 - Chassis slides for a 19" rack mounting
- LA100UF - Option 118A - RF Input On Front Output On Rear
- LA100UF - Option 118B - RF Input On Rear Output On Front
| Model | LA100UF |
|---|
The Kalmus LA100UF RF Amplifier was designed for applications in communications, EMC testing, NMR/MRI and general laboratory use. Features of the Kalmus LA100UF Amplifier include: Broad bandwidth Linear operation Low compression at rated power VSWR protection No band switching Rack mountable GPIB & RS232 (optional) Blanking Remote capability RF gain control Automatic leveling (ALC) Safety interlock input Optional rear panel connectors Integrated RF power meter Rugged RF power MOSFET design Benefits of the Kalmus LA100UF Amplifier include: Wide instantaneous bandwidth for sweep applications, pulse and CW operation Delivers rated power with low distortion Low RF leakage reduces possible interference with equipment in close proximity RF power sensors prevent overdrive and protect amplifier, and load, in high VSWR conditions Fully featured remote capability allows control and monitoring of all front panel functions Specifications of the Kalmus LA100UF include: Frequency: 100 - 500 MHz Power: 100W Power Gain: 50 dB Gain Flatness: Gain Control: 20 dB ALC: Yes Amplifier Class: AB System Impedance: 50 Ohm Input for Full Output: 1 - 2 mW Spurious (maximum): -70 dBc Harmonics: -16 dBc Protection: Temp, VSWR Operating Temp: -10 to 40° C Connectors: N Female Cooling: Forced Air Meter: Fwd: 100 W; Refl: % limit Indicators: AC Line, Blanking, Meter, ALC, VSWR, Temp, Remote Active ±2.5 dB (unleveled) ±0.5 dB (leveled)
- ±2.5 dB (unleveled)
- ±0.5 dB (leveled)
