Keithley

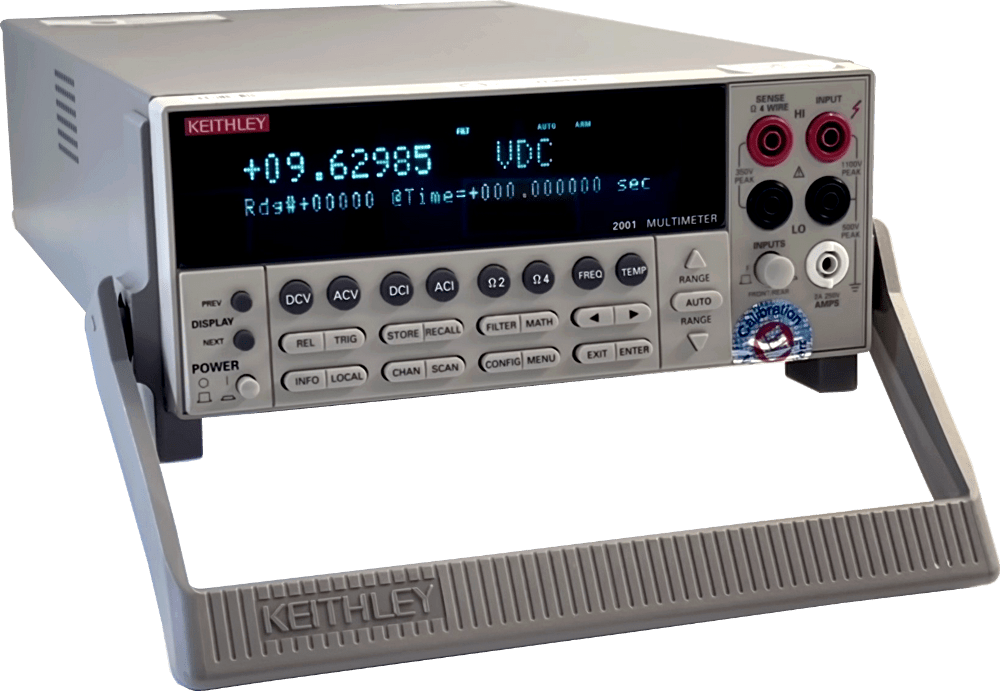

Keithley 2001
7½-Digit High-Performance Multimeter
Digital multimeter Instrument type
7½ digits Measurement resolution
200 mV – 1000 V DC voltage ranges
200 mV – 750 V AC voltage ranges
200 µA – 2 A DC current ranges
| Attribute | Value |
|---|---|
| Instrument type | Digital multimeter |
| Measurement resolution | 7½ digits |
| DC voltage ranges | 200 mV – 1000 V |
| AC voltage ranges | 200 mV – 750 V |
| DC current ranges | 200 µA – 2 A |
| Resistance ranges | 20 Ω – 1 GΩ |
| Frequency range | 1 Hz – 15 MHz |
| Scanner option | 2001-SCAN, 2001-TCSCAN |
| Interfaces | GPIB |
| Programming | SCPI |
The Keithley 2001 is a 7½-digit high-performance digital multimeter with a dual-line display and extensive measurement functions, including DC and AC voltage and current, resistance, frequency and temperature. Its high resolution and low noise suit metrology, research and calibration labs as well as precision production test. Optional internal scanner cards (2001-SCAN and 2001-TCSCAN) add multi-channel capability, and the instrument is controlled via GPIB.
Testwall can supply the used Keithley 2001 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
