Keithley 2182A
| Attribute | Value |
|---|---|
| Voltage Measurement Range | 10 nV to 120 V (DC), with 7 selectable ranges per channel |
| Voltage Measurement Resolution | Up to 8½ digits (100 nV resolution on 100 mV range) |
| Input Impedance | Greater than 10 GΩ on all DC voltage ranges |
| Number of Input Channels | 2 differential input channels |
| Temperature Measurement | Supports thermocouple (J, K, T, E, R, S, B, N types) and 4-wire RTD measurements |
| Noise Rejection (NMRR/CMRR) | NMRR: 60 dB at 60 Hz; CMRR: 120 dB (DC and 60 Hz) |
| Reading Rate | Up to 18 readings per second (60 Hz power line frequency) |
| Interface / Connectivity | IEEE-488 (GPIB) and RS-232 standard interfaces |
| Trigger Capabilities | Internal, external, and bus triggering; supports delta mode for low-resistance measurements |
| Power Requirements | 100–240 VAC, 50/60 Hz, 30 VA maximum |
Keithley 2182A Options:
- 2182A - 2182A-3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
- 2182A - C/2182A-3Y-ISO - 3 (ISO-17025 accredited) calibrations within 3 years of purchase
| Model | 2182A |
|---|

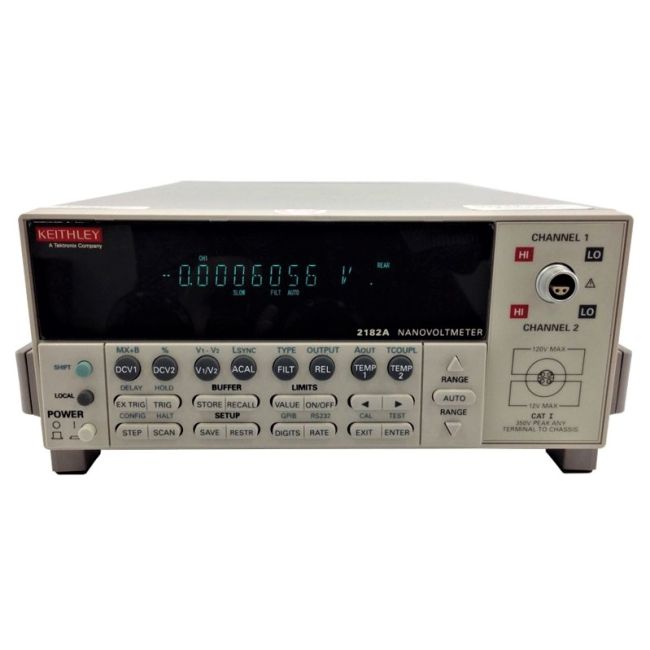

The Keithley 2182A Nanovoltmeter is a two-channel instrument optimized for ultra-low noise, high-speed voltage measurements, ideal for characterizing low resistance materials. It offers advanced delta mode, built-in thermocouple compensation, pulse measurement capabilities, and 15nV p-p noise at 1s response time. It supports dual-channel input for voltage, temperature, or resistance ratio measurements, with selectable speed/noise settings for diverse application needs.
Used in metrology, nanotechnology, and research applications, it provides accurate results in high-speed settings. It is perfect for low-resistance material testing and sensitive voltage measurements.
Testwall can supply the used Keithley 2182A Nanovoltmeter, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2182A Nanovoltmeter.
