Keithley 2200-30-5
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 30 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 150 W |
| Voltage Programming Accuracy | 0.05% + 10 mV |
| Current Programming Accuracy | 0.1% + 5 mA |
| Output Voltage Ripple and Noise | ≤ 3 mVrms / 15 mVpp |
| Output Current Ripple and Noise | ≤ 3 mArms |
| Interface | USB, GPIB, RS-232 |
| AC Input Voltage | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 40°C |
Keithley 2200-30-5 Options:
- 2200-30-5 - CS-1638-12 - Rear Panel Mating Connector
- 2200-30-5 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2200-30-5 - USB-B-1 - USB Cable
- 2200-30-5 - 4299-7 - Fixed Rack Mount Kit
- 2200-30-5 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cables, 0.5m (1.6 ft)
- 2200-30-5 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cables, 1m (3.2 ft)
- 2200-30-5 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cables, 2m (6.5 ft)
- 2200-30-5 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cables, 3m (10 ft)
- 2200-30-5 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cables, 4m (13 ft)
- 2200-30-5 - 2200-30-5-EW - 1 additional year of factory warranty
- 2200-30-5 - C/2200-30-5-3Y-STD - 3 calibrations within 3 years of purchase
- 2200-30-5 - C/2200-30-5-3Y-DATA - 3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase
- 2200-30-5 - C/2200-30-5-5Y-STD - 5 calibrations within 5 years of purchase
- 2200-30-5 - C/2200-30-5-5Y-DATA - 5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase
| Model | 2200-30-5 |
|---|

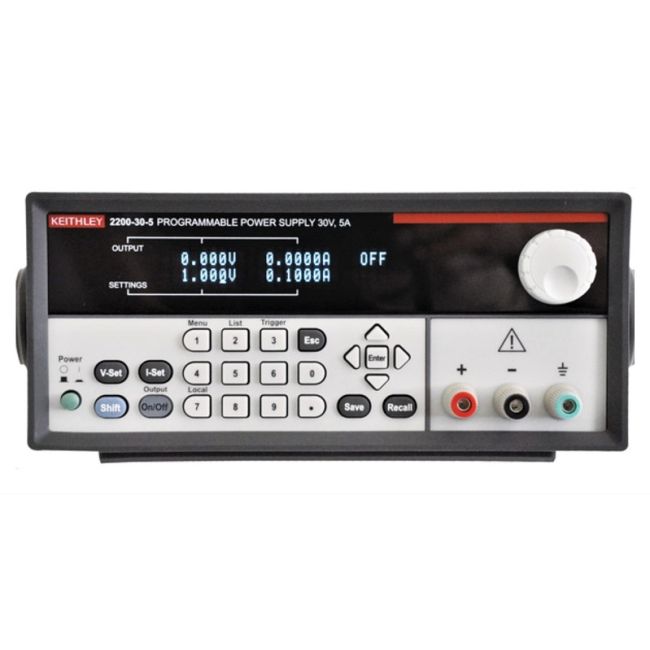

The Keithley 2200-30-5 Programmable DC Power Supply delivers up to 30 V and 5 A with a maximum power of 150 W. It features high resolution, remote sensing, and a dual-line display showing both programmed and actual output values. Its List mode supports up to 80 output steps, and it offers built-in USB and GPIB interfaces for automation, along with protections to prevent damage to devices under test.
This unit is ideal for characterizing circuits and devices in labs or production, featuring flexible constant current/voltage operation, front panel lock-out, and memory for repeatable test sequences.
Testwall can supply the used Keithley 2200-30-5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2200-30-5.
