Keithley

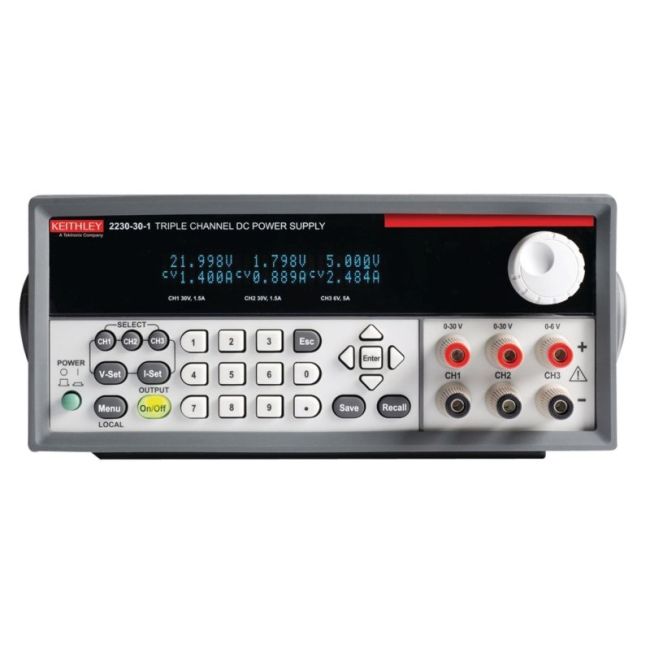

Keithley 2230-30-1
Programmable DC Power Supply,Triple, 6V, 5A / (2x) 30V, 1.5A
3 Number of Outputs
0–30 V Output Voltage (CH1 & CH2)
0–3 A Output Current (CH1 & CH2)
0–6 V Output Voltage (CH3)
0–5 A Output Current (CH3)
| Attribute | Value |
|---|---|
| Number of Outputs | 3 |
| Output Voltage (CH1 & CH2) | 0–30 V |
| Output Current (CH1 & CH2) | 0–3 A |
| Output Voltage (CH3) | 0–6 V |
| Output Current (CH3) | 0–5 A |
| Total Power | 195 W |
| Voltage Setting Resolution | 10 mV |
| Current Setting Resolution | 1 mA |
| Remote Interface | USB, GPIB (optional) |
| Display | 4-digit LED display per channel |
Keithley 2230-30-1 Options:
- 2230-30-1 - 2230G-30-1 - Programmable Triple Channel DC Power Supply with GPIB Interface
- 2230-30-1 - 2230J-30-1 - Programmable Triple Channel DC Power Supply for Japan
- 2230-30-1 - 2230GJ-30-1 - Programmable Triple Channel DC Power Supply with GPIB Interface for Japan
- 2230-30-1 - CS-1655-15 - Rear Panel Mating Connector for Series 2200 Power Supplies
- 2230-30-1 - JUMPER - Shorting Jumper for CS-1655-15 Connector
- 2230-30-1 - 4299-7 - Universal Fixed Rack Mount Kit
- 2230-30-1 - RMU2U - Fixed Rack Mount Kit
- 2230-30-1 - 386-7598-xx - RMU2U Rack Mount Cosmetic Filler Panel
- 2230-30-1 - USB-1-1 - USB Cable
- 2230-30-1 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2230-30-1 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cables, 0.5m (1.6 ft)
- 2230-30-1 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cables, 1m (3.2 ft)
- 2230-30-1 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cables, 2m (6.5 ft)
- 2230-30-1 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cables, 3m (10 ft)
- 2230-30-1 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cables, 4m (13 ft)
- 2230-30-1 - 2230-30-1-EW - 1 additional year of factory warranty
- 2230-30-1 - 2230-30-1-5Y-EW - 2 additional years of factory warranty beyond the standard 3-year warranty
- 2230-30-1 - C/2230-30-1-3Y-STD - 3 calibrations within 3 years of purchase
- 2230-30-1 - C/2230-30-1-3Y-DATA - 3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase
- 2230-30-1 - C/2230-30-1-5Y-STD - 5 calibrations within 5 years of purchase
- 2230-30-1 - C/2230-30-1-5Y-DATA - 5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase
| Model | 2230-30-1 |
|---|
The KEITHLEY (Aglient) 2230‑30‑1 is a triple‑output programmable DC power supply featuring two 30 V/1.5 A (45 W) channels plus a 6 V/5 A (30 W) channel—ideal for powering mixed‑voltage systems with precision performance.
Each channel offers independent, isolated outputs and remote sensing, with the 30 V channels configurable in series for higher voltage or parallel for increased current, delivering up to 0.03 % voltage and 0.1 % current accuracy.
With its versatile, independent channel control and high‑accuracy outputs, Testwall’s offering of the 2230‑30‑1 outperforms competitors by combining cost‑effective flexibility with expert support and global reliability.
The KEITHLEY (Aglient) 2230‑30‑1 Multi‑Channel Programmable DC Power Supply combines three isolated, independently controlled outputs (2×30 V/1.5 A and 1×6 V/5 A) to efficiently test and characterize devices requiring multiple power sources. Features include remote sensing, channel combination capability (series/parallel), and high accuracy (0.03 % voltage, 0.1 % current), ensuring precision results. Testwall can supply the used 2230‑30‑1, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the 2230‑30‑1.
