Keithley 2260B-250-9
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 250 V |
| Output Current Range | 0 – 9 A |
| Maximum Output Power | 2250 W |
| Voltage Programming Accuracy | 0.05% + 0.05% FS |
| Current Programming Accuracy | 0.1% + 0.1% FS |
| Output Voltage Ripple & Noise (RMS) | ≤ 75 mV |
| Output Current Ripple & Noise (RMS) | ≤ 30 mA |
| Interface | USB, LAN (LXI), RS-232, Analog Programming |
| AC Input Voltage | 100 – 240 VAC, 50/60 Hz |
| Form Factor | 2U Half-Rack (Rack Mountable) |
Keithley 2260B-250-9 Options:
- 2260B-250-9 - 2260-001 - Accessory Kit: Analog control mating connector, pins, cover, and ground wire
- 2260B-250-9 - 2260-002 - Simple IDC Tool
- 2260B-250-9 - 2260-003 - Contact Removal Tool
- 2260B-250-9 - 2260-004 - Basic Accessories Kit: Air filter, analog connector cover, analog control lock lever, M8-size output terminal bolts, washers and screws, and M4-size output terminal screws with washers
- 2260B-250-9 - 2260-005 - Cable, 0.5m (1.6 ft.), to connect two Series 2260B power supplies in series
- 2260B-250-9 - 2260-006 - Cable, 0.5m (1.6 ft.), to connect two Series 2260B power supplies in parallel
- 2260B-250-9 - 2260B-007 - Cable, 0.5m (1.6 ft.), to connect three Series 2260B power supplies in parallel
- 2260B-250-9 - 2260B-GPIB-USB - GPIB-to-USB Adapter: Provides a GPIB interface for the Series 2260B power supplies
- 2260B-250-9 - 2260B-EXTERM - Extended Terminal: Test Leads, 0.7m (28 in.), and terminal box to bring outputs to the front of the instrument or another location. Magnetic base attaches to side of instrument
- 2260B-250-9 - 2260B-RMK-EIA - Rack Mount Kit (EIA racks)
- 2260B-250-9 - 2260B-RMK-JIS - Rack Mount Kit (JIS racks)
- 2260B-250-9 - -EW - 3-year factory warranty extended to 1 additional year from date of shipment
- 2260B-250-9 - -5Y-EW - 3-year factory warranty extended to 5 years from date of shipment
- 2260B-250-9 - C/-3Y-STD - KeithleyCare 3 Year Standard Calibration Plan
- 2260B-250-9 - C/-3Y-DAT - KeithleyCare 3 Year Calibration with Data Plan
- 2260B-250-9 - C/-5Y-STD - KeithleyCare 5 Year Standard Calibration Plan
- 2260B-250-9 - C/-5Y-DAT - KeithleyCare 5 Year Calibration with Data Plan
| Model | 2260B-250-9 |
|---|

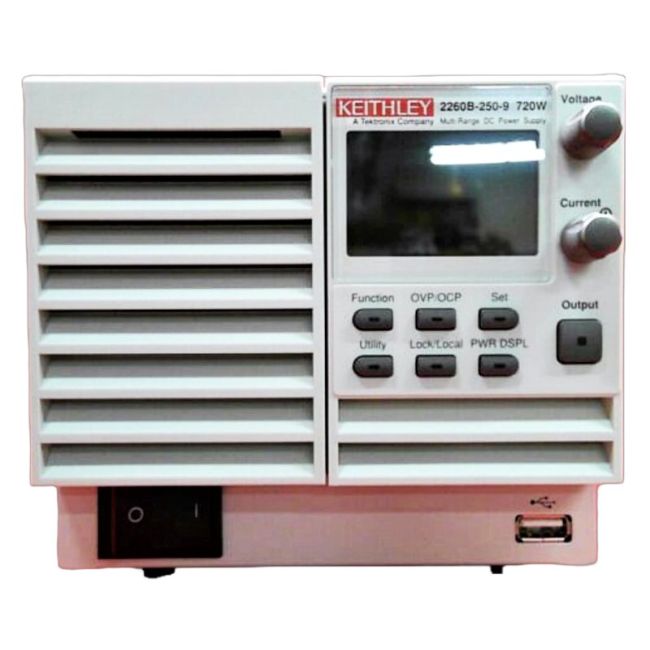

The Keithley 2260B-250-9 DC power supply delivers up to 250V and 9A with 720W output, featuring programmable voltage/current rise and fall times to control inrush current and prevent damage. It supports analog, USB, LAN, and optional GPIB interfaces for automation. The device simulates various battery chemistries with internal resistance up to 27.77Ω, and allows for dynamic waveform generation and analog control for complex test scenarios.
Ideal for automotive, battery testing, LED testing, and accelerated life tests, it ensures reliable voltage profiles and supports fast transient response with 1ms recovery time.
Testwall can supply the used Keithley 2260B-250-9, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2260B-250-9.
