Keithley 2260B-80-27
| Attribute | Value |
|---|---|
| Output Voltage | 0 – 80 V |
| Output Current | 0 – 27 A |
| Output Power | 2160 W |
| Number of Channels | 1 |
| Programming Interface | USB, LAN (LXI), GPIB (optional), RS-232 |
| Voltage Setting Resolution | 10 mV |
| Current Setting Resolution | 10 mA |
| Line Regulation (Voltage) | 0.01% + 10 mV |
| Load Regulation (Voltage) | 0.01% + 10 mV |
| Operating Temperature | 0°C to 40°C |
Keithley 2260B-80-27 Options:
- 2260B-80-27 - EW - 3-year factory warranty extended to 1 additional year from date of shipment
- 2260B-80-27 - 5Y-EW - 3-year factory warranty extended to 5 years from date of shipment
- 2260B-80-27 - 3Y-STD - KeithleyCare 3 Year Standard Calibration Plan
- 2260B-80-27 - 3Y-DAT - KeithleyCare 3 Year Calibration with Data Plan
- 2260B-80-27 - 5Y-STD - KeithleyCare 5 Year Standard Calibration Plan
- 2260B-80-27 - 5Y-DAT - KeithleyCare 5 Year Calibration with Data Plan
- 2260B-80-27 - 2260B-GPIB-USB - GPIB-to-USB Adapter
- 2260B-80-27 - 2260B-EXTERM - Extended Terminal
- 2260B-80-27 - 2260B-RMK-EIA - Rack Mount Kit (EIA racks)
- 2260B-80-27 - 2260B-RMK-JIS - Rack Mount Kit (JIS racks)
| Model | 2260B-80-27 |
|---|

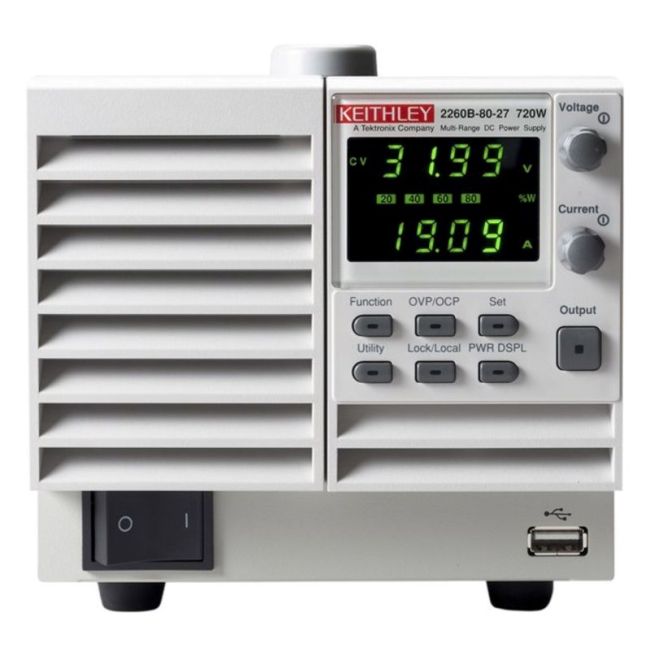

The Keithley 2260B-80-27 is a programmable 720W DC power supply delivering up to 80V and 27A, with constant power output and advanced slew rate control. It features series/parallel expandability to 160V or 216A, programmable internal resistance, and analog control for test profiles. Interfaces include USB, LAN, and optional GPIB.
Ideal for high-power applications such as battery testing, LED analysis, and automated systems, the 2260B-80-27 ensures precision with programmable rise/fall times, internal resistance simulation, and a 1ms transient recovery.
Testwall can supply the used Keithley 2260B-80-27, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2260B-80-27.
