Keithley

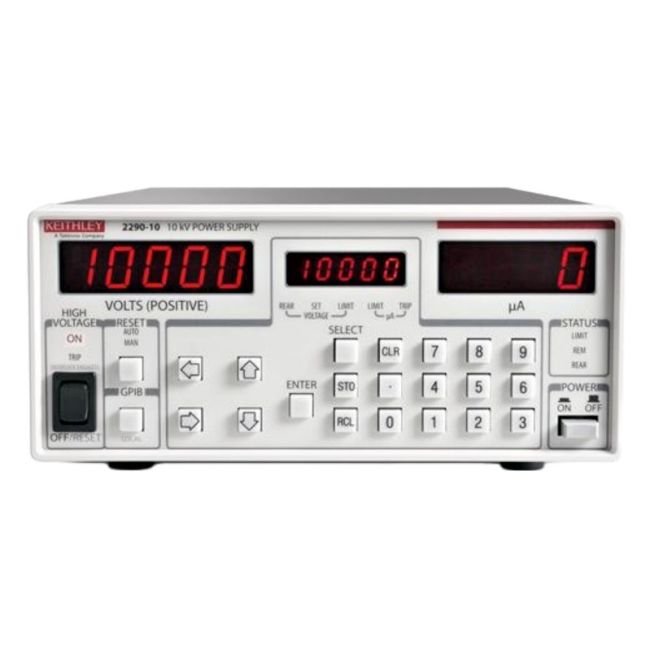

Keithley 2290-10
DC Power Supply, 100V to 10kV, 0 to 1 mA
0 to 10 kV DC Output Voltage Range
Up to 10 mA Output Current
0.01% of full scale Voltage Regulation
0.01% of full scale Current Regulation
Less than 10 mV RMS Voltage Ripple and Noise
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 10 kV DC |
| Output Current | Up to 10 mA |
| Voltage Regulation | 0.01% of full scale |
| Current Regulation | 0.01% of full scale |
| Voltage Ripple and Noise | Less than 10 mV RMS |
| Display | 4-digit LED display for voltage and current monitoring |
| Interface | IEEE-488 (GPIB) and RS-232 |
| Output Polarity | Positive or Negative (selectable) |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
Keithley 2290-10 Options:
- 2290-10 - 2290-10-SHVUC - 10kV SHV Male to Unterminated Cable, 3m (10ft)
- 2290-10 - 2290-10-SHV - 10kV SHV Male–SHV Male Cable, 3m (10 ft)
- 2290-10 - 2290-10-SHVBH - 10kV SHV Female Bulkhead Connector
- 2290-10 - 2290-10-RMK-1 - Single Fixed Rack Mount Kit for 10kV Power Supply
- 2290-10 - 2290-10-RMK-2 - Dual Fixed Rack Mount Kit for 10kV Power Supply
- 2290-10 - 2290-PM-200 - 10kV Protection Module
- 2290-10 - 2290-INT-CABLE - 3-Pin Connector to Unterminated Interlock Cable
- 2290-10 - 4299-7 - Fixed Shelf Rack Mount Kit
- 2290-10 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2290-10 - KUSB-488B - IEEE-488.2 USB-GPIB Interface Adapter for USB port with built-in 2m (6.6 ft) cable
- 2290-10 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cable, 0.5m (1.6 ft)
- 2290-10 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cable, 1m (3.2 ft)
- 2290-10 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cable, 2m (6.5 ft)
- 2290-10 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cable, 3m (10 ft)
- 2290-10 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cable, 4m (13 ft)
- 2290-10 - 2290-10-EW - 1 Year Factory Warranty extended one additional year from date of shipment
- 2290-10 - 2290-10-3Y-EW - 1 Year Factory Warranty extended to 3 years from date of shipment
- 2290-10 - 2290-10-5Y-EW - 1 Year Factory Warranty extended to 5 years from date of shipment
- 2290-10 - C/2290-10-3Y-STD - KeithleyCare 3 Year Standard Calibration Plan
- 2290-10 - C/2290-10-3Y-DATA - KeithleyCare 3 Year Calibration with Data Plan
- 2290-10 - C/2290-10-5Y-STD - KeithleyCare 5 Year Standard Calibration Plan
- 2290-10 - C/2290-10-5Y-DATA - KeithleyCare 5 Year Calibration with Data Plan
| Model | 2290-10 |
|---|
The Keithley (Aglient) 2290‑10 offers ultra‑stable 100 V to 10 000 V high‑voltage output at up to 1 mA, with fine 1 V and 1 μA resolution on separate displays and a selectable third display for voltage or current limits. It features GPIB, RS‑232, analog control, <10 VRMS ripple and ultra‑low noise for picoamp‑level measurement accuracy.
Its built‑in safety interlock, 2290‑PM‑200 protection module, and low‑voltage analog outputs ensure safe automation and protection of sensitive low‑voltage instrumentation.
With expert support and global delivery, Testwall’s offering of the Keithley 2290‑10 ensures unparalleled reliability, service quality, and performance compared to competitors.
Testwall can supply the used Keithley 2290‑10, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2290‑10
