Keithley 2290-5
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 5000 V DC |
| Output Current | 5.25 mA maximum |
| Voltage Resolution | 1 V |
| Voltage Accuracy | ±(0.05% + 2 V) |
| Current Limit Range | 0.1 mA to 5.25 mA |
| Ripple and Noise | Less than 10 mV RMS (20 Hz to 20 MHz) |
| Interface | IEEE-488 (GPIB) and RS-232 |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz, 75 VA maximum |
| Operating Temperature | 0°C to 50°C |
| Dimensions (H x W x D) | 89 mm × 213 mm × 369 mm (3.5 in × 8.375 in × 14.5 in) |
Keithley 2290-5 Options:
- 2290-5 - 2290E-5 - 5kV Power Supply, 240VAC Nominal Input Voltage
- 2290-5 - 2290J-5 - 5kV Power Supply, 100VAC Nominal Input Voltage
- 2290-5 - 2290-5-SHV - 5kV SHV Female–SHV Female Cable, 3m (10 ft)
- 2290-5 - 2290-5-MHV - 5kV SHV Female–MHV Male Cable, 3m (10 ft)
- 2290-5 - 2290-5-SHVBH - 5kV SHV Male Bulkhead Connector
- 2290-5 - 2290-5-RMK-1 - Single Fixed Rack Mount Kit for 5kV Power Supply
- 2290-5 - 2290-5-RMK-2 - Dual Fixed Rack Mount Kit for 5kV Power Supply
- 2290-5 - 2290-PM-200 - 10kV Protection Module
- 2290-5 - 2290-INT-CABLE - 3-Pin Connector to Unterminated Interlock Cable
- 2290-5 - 4299-7 - Fixed Shelf Rack Mount Kit
- 2290-5 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI Bus
- 2290-5 - KUSB-488B - IEEE-488.2 USB-GPIB Interface Adapter for USB port with built-in 2m (6.6 ft) cable
- 2290-5 - 7007-05 - Double Shielded Premium IEEE-488 Interface Cable, 0.5m (1.6 ft)
- 2290-5 - 7007-1 - Double Shielded Premium IEEE-488 Interface Cable, 1m (3.2 ft)
- 2290-5 - 7007-2 - Double Shielded Premium IEEE-488 Interface Cable, 2m (6.5 ft)
- 2290-5 - 7007-3 - Double Shielded Premium IEEE-488 Interface Cable, 3m (10 ft)
- 2290-5 - 7007-4 - Double Shielded Premium IEEE-488 Interface Cable, 4m (13 ft)
- 2290-5 - 2290-5-EW - 1 Year Factory Warranty extended one additional year from date of shipment
- 2290-5 - 2290-5-3Y-EW - 1 Year Factory Warranty extended to 3 years from date of shipment
- 2290-5 - 2290-5-5Y-EW - 1 Year Factory Warranty extended to 5 years from date of shipment
- 2290-5 - C/2290-5-3Y-STD - KeithleyCare 3 Year Standard Calibration Plan
- 2290-5 - C/2290-5-3Y-DATA - KeithleyCare 3 Year Calibration with Data Plan
- 2290-5 - C/2290-5-5Y-STD - KeithleyCare 5 Year Standard Calibration Plan
- 2290-5 - C/2290-5-5Y-DATA - KeithleyCare 5 Year Calibration with Data Plan
| Model | 2290-5 |
|---|

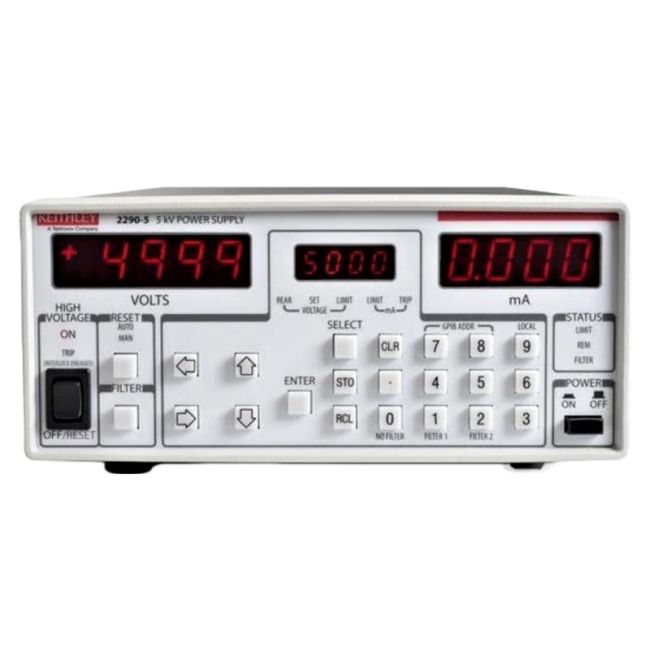

The Keithley 2290-5 High Voltage Power Supply provides 50V to 5000V at 5mA, with high precision output measurements—1V resolution for voltage and 1μA for current. It includes three display modes for voltage, limits, and current trip. Noise is minimized with selectable filters reducing ripple to 3mVRMS, ensuring accurate picoamp-level measurements. GPIB/RS-232 interfaces support automation, and interlock safety features enhance protection.
Ideal for high voltage device testing, insulation assessments, and high energy physics, the 2290-5 integrates seamlessly with Keithley SMUs and the 2290-PM-200 Protection Module for complete, safe testing solutions.
Testwall can supply the used Keithley 2290-5, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2290-5.
