Keithley 2308
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Maximum Output Voltage | 15 V |
| Maximum Output Current | 5 A (Channel 1), 2.5 A (Channel 2) |
| Battery Simulation Function | Simulates battery voltage drop under load for realistic device testing |
| Voltage Readback Resolution | 1 mV |
| Current Readback Resolution | 10 µA (low range), 100 µA (high range) |
| Interface / Connectivity | GPIB (IEEE-488), RS-232 |
| Pulse Current Capability | Up to 5 A peak pulse current to simulate battery behavior during RF transmission |
| Operating Temperature Range | 0°C to 50°C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Keithley 2308 Options:
- 2308 - 2306-DISP - Remote Display
- 2308 - CS-846 - Mating Output Connector
- 2308 - SC-182 - Low Inductance Coaxial Cable
- 2308 - KPCI-488LPA - IEEE-488.2 Interface Board for the PCI bus
- 2308 - KUSB-488B - IEEE-488.2 USB-to-GPIB Interface Adapter for USB Port with built-in 2m (6.6ft) cable
- 2308 - 7007-05 - Double Shielded Premium IEEE-488 Cable, 0.5m (1.6ft)
- 2308 - 7007-1 - Double Shielded Premium IEEE-488 Cable, 1m (3.2ft)
- 2308 - 7007-2 - Double Shielded Premium IEEE-488 Cable, 2m (6.5ft)
- 2308 - 7007-3 - Double Shielded Premium IEEE-488 Cable, 3m (10ft)
- 2308 - 7007-4 - Double Shielded Premium IEEE-488 Cable, 4m (13ft)
- 2308 - 4288-1 - Single Fixed Rack Mount Kit
- 2308 - 4288-2 - Dual Fixed Rack Mount Kit
- 2308 - 2308-3Y-EW - 1-Year Factory Warranty Extended to 3 Years for the Model 2308
- 2308 - 2308-3Y-17025 - 3 (ISO-17025 Accredited) Calibrations within 3 Years of Purchase
- 2308 - 2308-3Y-DATA - 3 (ANSI-Z540-1 Compliant) Calibrations within 3 Years of Purchase
| Model | 2308 |
|---|

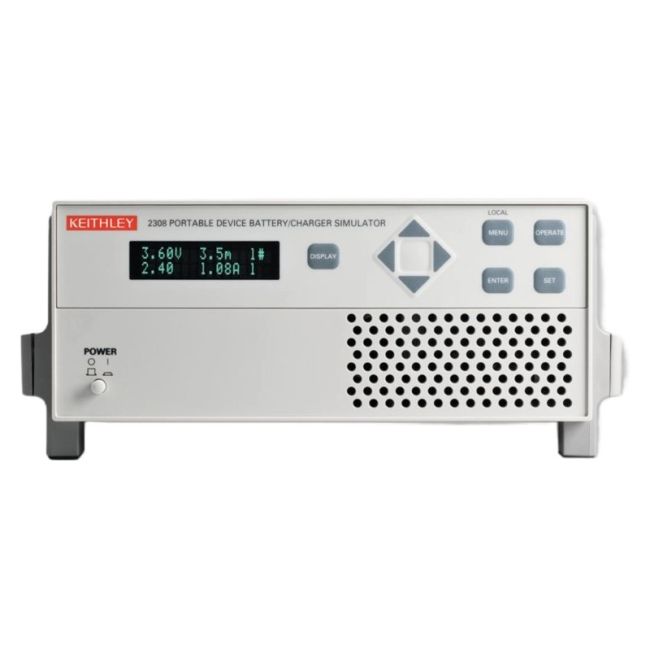

The Keithley 2308 Battery/Charger Simulator is a dual-channel power supply optimized for testing portable electronic devices, providing ultra-fast response to pulsed load operations. It features a speed-optimized command set, variable output resistance, analog output for waveform characterization, and 100nA sensitivity for precise current measurements.
Ideal for evaluating mobile phones, radios, PDAs, and wireless chipsets, it simulates real battery behavior and supports current measurement including pulse peak, average, and baseline readings.
Testwall can supply the used Keithley 2308, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2308.
