Keithley 236
| Attribute | Value |
|---|---|
| Voltage Source Range | 100 mV to 110 V |
| Current Source Range | 100 pA to 100 mA |
| Voltage Measurement Range | 100 mV to 110 V |
| Current Measurement Range | 100 pA to 100 mA |
| Minimum Current Resolution | 10 fA |
| Source Accuracy (Voltage) | 0.1% of range |
| Measurement Accuracy (Current) | 0.1% of range |
| Interface | IEEE-488 (GPIB) |
| Maximum Power Output | 2 W |
| Operating Temperature Range | 0°C to 50°C |
Keithley 236 Options:
- 236 - 236-ILC-3 - Interlock Cable, 3m (10 ft)
- 236 - 237-ALG-2 - 3-Slot, Low Noise Triax Cable, 2m (6.6 ft)
- 236 - 7078-TRX-3 - 3-Slot, Low Noise Triax Cable, 0.9m (3 ft)
- 236 - 7078-TRX-10 - 3-Slot, Low Noise Triax Cable, 3m (10 ft)
- 236 - 7078-TRX-20 - 3-Slot, Low Noise Triax Cable, 6m (20 ft)
- 236 - 1938 - Fixed Rack Mount Kit
- 236 - 1939 - Slide Rack Mount Kit
- 236 - 8000-10 - Equipment Cabinet, 10 in high
- 236 - 8000-14 - Equipment Cabinet, 14 in high
- 236 - Metrics-ICS - Metrics-ICS-IV/TestPoint Software
- 236 - 707A - Switching Matrix
- 236 - 708A - Switching Matrix
- 236 - 7072 - Semiconductor Matrix Card
- 236 - 7072-HV - High Voltage Semiconductor Matrix Card
- 236 - 7153 - High Voltage Low Current Matrix Card
- 236 - 7172 - 8×12 Low Current Matrix Card
- 236 - 7174A - 8×12 High Speed, Low Current Matrix Card
- 236 - 8006 - Component Test Fixture
- 236 - 8007 - Semiconductor Test Fixture
- 236 - 213 - Quad Voltage Source
- 236 - 237-TRX-NG - 3-Slot Triax to 3-Lug Female Triax Connector
| Model | 236 |
|---|

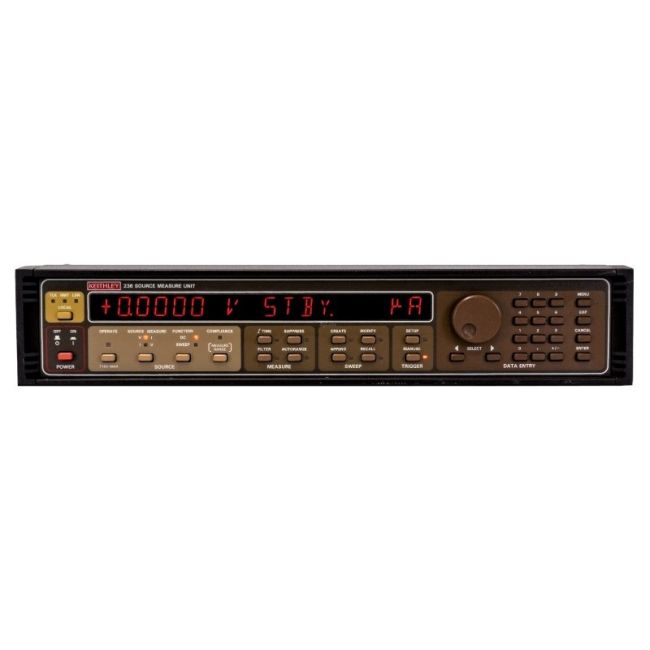

The Keithley 236 Source Measure Unit integrates voltage and current sourcing with simultaneous measurement capabilities. It functions as four instruments in one: voltage source, current source, voltage meter, and current meter. Users can configure custom voltage or current sweeps using CREATE, APPEND, and MODIFY waveform operations. It supports voltage sourcing from 100 µV to 110 V, current sourcing from 100 fA to 100 mA, and precise measurement ranges for both voltage and current, down to 10 µV and 10 fA respectively.
Designed for flexibility, the Keithley 236 offers 3-lug triaxial output connectors and BNC(f) trigger I/O, with IEEE-488 interface for easy integration. It ensures stable performance into loads up to 20,000 pF.
Testwall can supply the used Keithley 236, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 236.
