Keithley

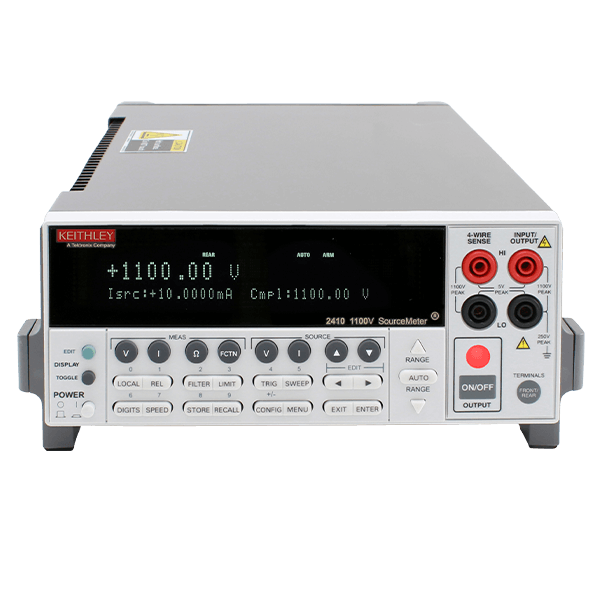

Keithley 2410
1100V High-Voltage SourceMeter
SourceMeter (SMU) Instrument type
1 Number of channels
±1100 V Maximum voltage (source/measure)
±1.05 A (up to 21 V); ±21 mA (up to 1100 V) Maximum current (DC)
22 W Maximum power (DC)
| Attribute | Value |
|---|---|
| Instrument type | SourceMeter (SMU) |
| Number of channels | 1 |
| Maximum voltage (source/measure) | ±1100 V |
| Maximum current (DC) | ±1.05 A (up to 21 V); ±21 mA (up to 1100 V) |
| Maximum power (DC) | 22 W |
| Measurement resolution | 5½ digits |
| Interfaces | GPIB, RS-232 |
| Programming | SCPI |
The Keithley 2410 is a high-voltage member of the 2400 SourceMeter family, sourcing and measuring up to 1100 V and up to 1 A at lower voltages, with 20 W output. It combines a precision voltage/current source with a 5½-digit DMM, making it ideal for breakdown, leakage and insulation-resistance testing of semiconductors, varistors and passive components. GPIB and RS-232 interfaces support integration into automated test systems.
Testwall can supply the used Keithley 2410 fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
