Keithley

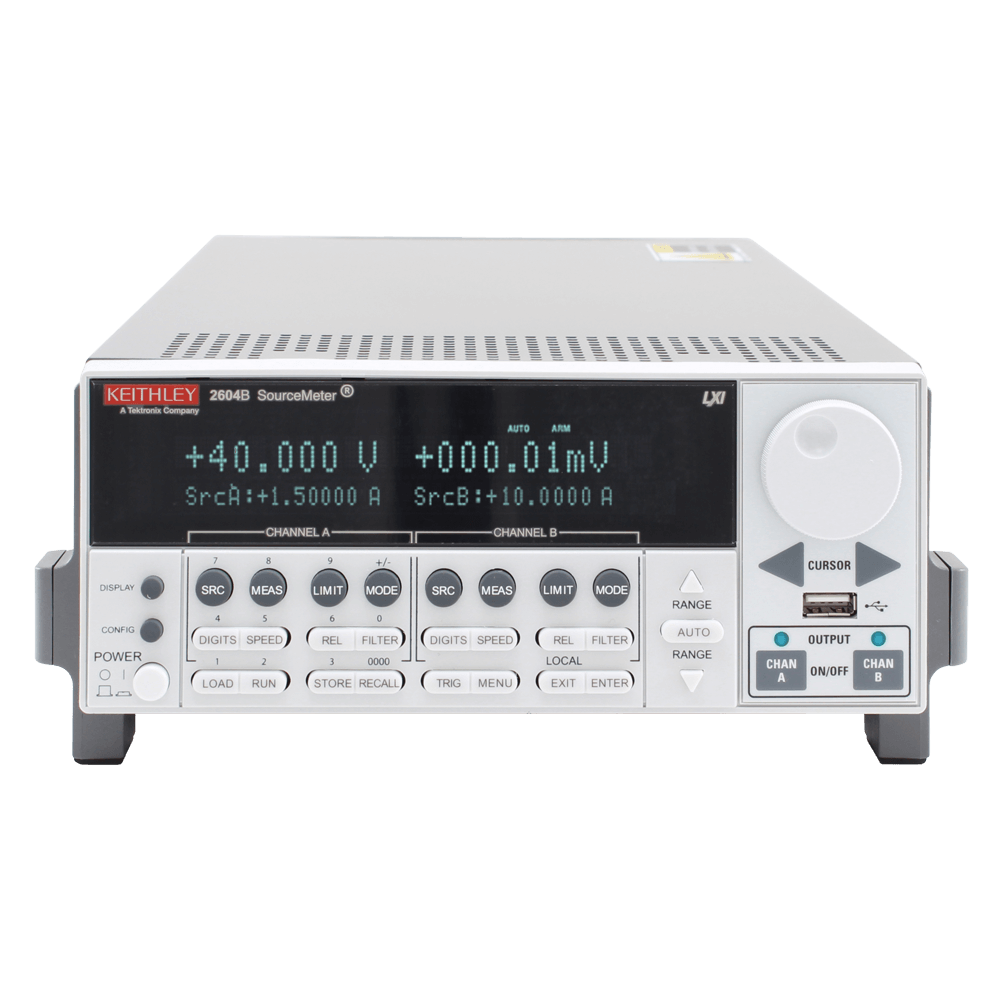

Keithley 2604B
Dual-Channel Benchtop SourceMeter, 40V, 10A Pulse
SourceMeter (SMU) Instrument type
2 Number of channels
±40 V Maximum voltage (source/measure)
±3 A per channel Maximum current (DC)
±10 A per channel Maximum current (pulse)
| Attribute | Value |
|---|---|
| Instrument type | SourceMeter (SMU) |
| Number of channels | 2 |
| Maximum voltage (source/measure) | ±40 V |
| Maximum current (DC) | ±3 A per channel |
| Maximum current (pulse) | ±10 A per channel |
| Maximum power (DC) | 40.4 W per channel |
| Minimum current resolution | 100 fA |
| Minimum voltage resolution | 1 µV |
| Measurement resolution | 6½ digits |
| Interfaces | GPIB, USB, RS-232 |
| Programming | TSP (Lua) |
The Keithley 2604B is a dual-channel benchtop SourceMeter in the 2600B family, rated to 40 V, 3 A DC and 10 A pulsed per channel. It offers the same precision source-measure performance and TSP scripting as the 2600B system models, in a cost-effective configuration for bench I-V characterisation of discrete devices, LEDs and power components.
Testwall can supply the used Keithley 2604B fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
