Keithley

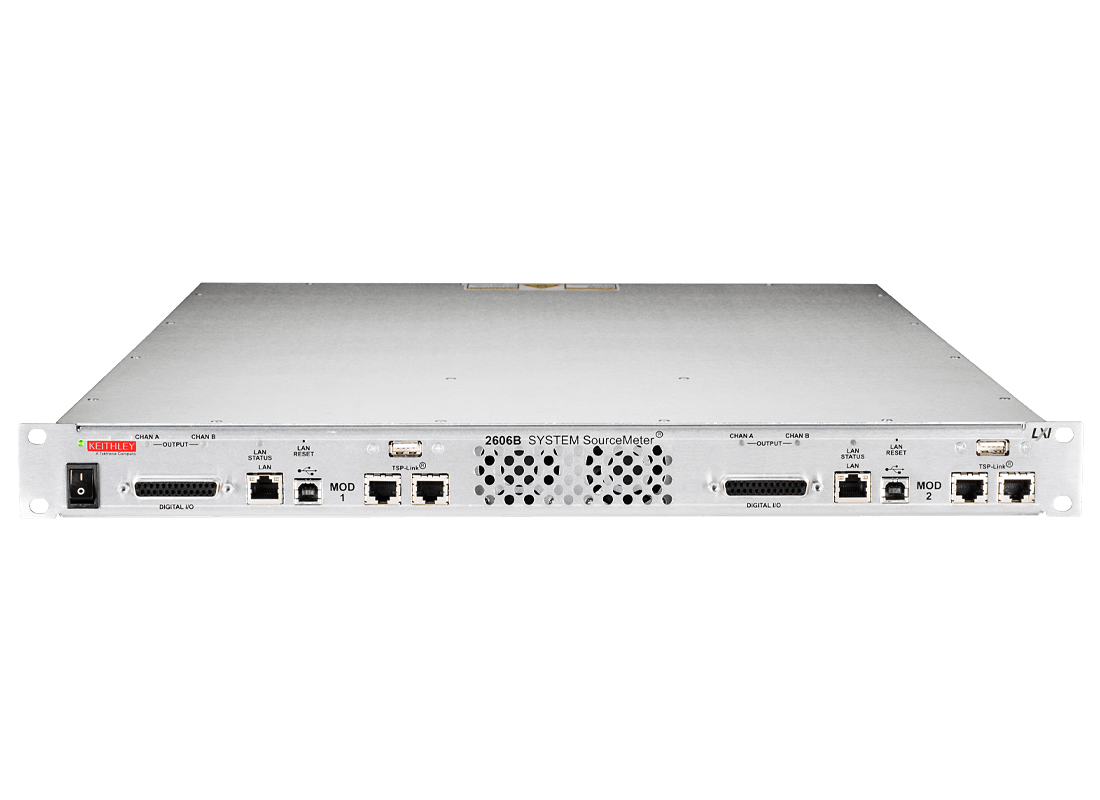

Keithley 2606B
4-Channel High-Density System SourceMeter
SourceMeter (SMU) Instrument type
4 Number of channels
±20 V Maximum voltage (source/measure)
±3 A per channel Maximum current (DC)
±10 A per channel Maximum current (pulse)
| Attribute | Value |
|---|---|
| Instrument type | SourceMeter (SMU) |
| Number of channels | 4 |
| Maximum voltage (source/measure) | ±20 V |
| Maximum current (DC) | ±3 A per channel |
| Maximum current (pulse) | ±10 A per channel |
| Minimum current resolution | 100 fA |
| Minimum voltage resolution | 1 µV |
| Form factor | 1U rack-mount |
| Interfaces | LAN (LXI), Digital I/O, TSP-Link |
| Programming | TSP (Lua) |
The Keithley 2606B is a four-channel System SourceMeter in a 1U chassis, with each channel rated to 20 V and 3 A DC (10 A pulsed). Its high channel density and TSP scripting make it ideal for parallel production testing of optoelectronic devices such as laser diodes and VCSELs, as well as other multi-device I-V applications where rack space is limited.
Testwall can supply the used Keithley 2606B fully tested, with calibration available on request and delivery across Europe. Send us your requirements and ask for a quote.
