Keithley 2614B
| Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Voltage Source Range | 100 nV to 200 V |
| Current Source Range | 100 fA to 1.5 A |
| Voltage Measurement Accuracy | 0.015% basic accuracy |
| Current Measurement Accuracy | 0.020% basic accuracy |
| Maximum Power Output | 30 W per channel (60 W total) |
| Minimum Resistance Measurement | 100 µΩ |
| Interface/Connectivity | GPIB, RS-232, USB, LAN (LXI) |
| Source Measure Unit (SMU) Type | Dual-channel System SourceMeter SMU Instrument |
| Operating Temperature Range | 0°C to 50°C |
Keithley 2614B Options:
- 2614B - 26xxB-EW - 1 Year Factory Warranty extended to 2 years
- 2614B - 26xxB-3Y-EW - 1 Year Factory Warranty extended to 3 years
- 2614B - 26xxB-5Y-EW - 1 Year Factory Warranty extended to 5 years
- 2614B - C/26xxB-3Y-STD - 3 Calibrations within 3 years
- 2614B - C/26xxB-5Y-STD - 5 Calibrations within 5 years
- 2614B - C/26xxB-3Y-DATA - 3 Calibrations within 3 years and includes calibration data before and after adjustment
- 2614B - C/26xxB-5Y-DATA - 5 Calibrations within 5 years and includes calibration data before and after adjustment
- 2614B - C/26xxB-3Y-1702S - 3 ISO-1702S accredited calibrations within 3 years
- 2614B - C/26xxB-5Y-1702S - 5 ISO-1702S accredited calibrations within 5 years
| Model | 2614B |
|---|

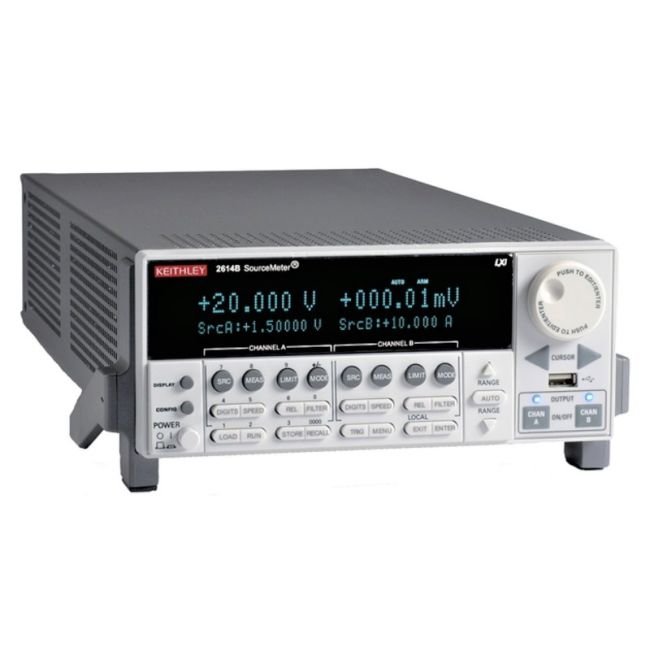

The Keithley 2614B SourceMeter integrates a precision power supply, current source, multimeter, pulse generator, waveform generator, and electronic load, offering exceptional performance with 200V, 10A range and 100fA/100nV resolution. Featuring two electrically isolated channels, 200W power capacity, and TSP™ with TSP-Link™ technology, it ensures rapid, accurate source-measure testing ideal for advanced I-V characterization.
Its embedded Test Script Processor enhances automation, while dual-channel design supports flexible and high-throughput configurations, ideal for R&D and production testing environments.
Testwall can supply the used Keithley 2614B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2614B.
