Keithley

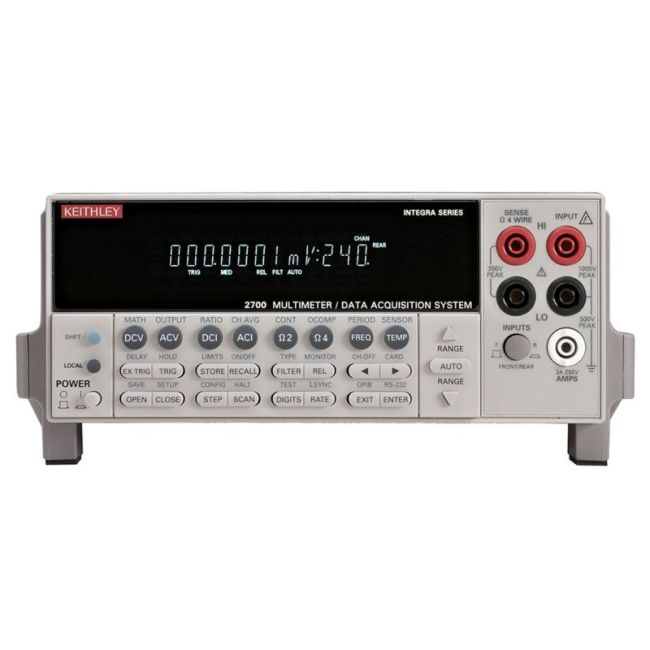

Keithley 2700

Multimeter / Data Acquisition System

Up to 80 two-wire or 40 four-wire channels (with multiplexer cards) Number of Channels

DCV, ACV, DCI, ACI, 2-wire and 4-wire resistance, frequency, period, temperature, and continuity Measurement Functions

100 mV to 300 V DC Voltage Range

±0.0035% of reading (on 100 mV range) DC Voltage Accuracy

Up to 6½ digits Resolution

Request datasheet

Attribute	Value
Number of Channels	Up to 80 two-wire or 40 four-wire channels (with multiplexer cards)
Measurement Functions	DCV, ACV, DCI, ACI, 2-wire and 4-wire resistance, frequency, period, temperature, and continuity
DC Voltage Range	100 mV to 300 V
DC Voltage Accuracy	±0.0035% of reading (on 100 mV range)
Resolution	Up to 6½ digits
Maximum Input Voltage	300 V DC or AC RMS
Interface/Connectivity	IEEE-488 (GPIB) and RS-232 standard interfaces
Scanning Speed	Up to 500 readings per second
Memory	Up to 450,000 readings stored in internal memory
Card Slots	2 slots for plug-in switching and data acquisition cards

Keithley 2700 Options:

2700 - 7700 - 20-channel differential multiplexer with automatic CJC and screw terminals for general purpose or thermocouple measurements
2700 - 7701 - 32-channel differential multiplexer with D-sub connectors, IDC ribbon cable compatible
2700 - 7702 - 40-channel differential multiplexer with screw terminals
2700 - 7703 - 32-channel high speed differential multiplexer with reed relays and D-sub connectors
2700 - 7705 - 40-channel switch/control module, SPST independent switch with D-sub connectors (Form C configurable)
2700 - 7706 - All-in-one I/O module, 20-channel differential multiplexer, 2 analog outputs, 16 digital outputs and event counter/totalizer with screw terminals
2700 - 7707 - 32 open-collector digital I/O and 10-channel differential multiplexer with D-sub connectors, IDC ribbon cable compatible
2700 - 7708 - 40-channel differential multiplexer with automatic CJC and screw terminals for general purpose or thermocouple measurements
2700 - 7709 - 6×8 matrix switch module, with D-sub connectors, IDC ribbon cable compatible
2700 - 7711 - 2GHz RF switch module with dual 1×4 configuration
2700 - 7712 - 3.5GHz RF switch module with dual 1×4 configuration
2700 - KPCI-488 - IEEE-488/GPIB interface for PCI bus
2700 - 7007-2 - 2-meter double shielded premium GPIB/IEEE-488 cable
2700 - 7705-MTC-2 - 2-meter male to female 50-pin D-sub cable for 7703, 7705, 7707, and 7709
2700 - 7707-MTC-2 - 2-meter male to female 25-pin D-sub cable for 7707 and 7709
2700 - 7788 - 50-pin D-shell connector kit (2 each)
2700 - 7789 - 50-pin/25-pin D-shell connector kit (1 each)
2700 - 7790 - 50-pin male, 50-pin female and 25-pin male IDC D-shell kit (1 each)
2700 - 2700/7700 - Value pack providing a basic 20-channel system
2700 - 2700-DAQ-40 - Includes Models 2700 and 7708 plus ExceLINX-1A for a 40-channel system
2700 - 2700-DAQ-80 - One Model 2700, two Model 7708 modules, and ExceLINX-1A for an 80-channel system

More Information
Model	2700

The Keysight (Aglient) Keithley 2700 is an integrated digital multimeter and data-acquisition system offering precision DC/AC voltage and current, two‑ and four‑wire ohms, frequency, period, temperature (thermocouple, RTD, thermistor), continuity, event counting, and robust digital I/O—all in a single rack‑or benchtop enclosure. Its modular plug‑in switching and control channels (20–200 channels), 500 ch/s scan rate (3 500 readings/s on a single channel), auto‑sensing universal power support (100–240 V, 45–66 Hz & 360–440 Hz), and alarm‑limit digital outputs make it ideal for high‑throughput automated test systems. Testwall can supply the used Keithley 2700, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2700.

Keithley 2700

Keithley 2700 Options:
