Keithley 2701
| Attribute | Value |
|---|---|
| Number of Channels | Up to 80 two-wire or 40 four-wire channels (with multiplexer cards) |
| Measurement Functions | DCV, ACV, DCI, ACI, 2-wire and 4-wire resistance, frequency, period, temperature, and continuity |
| DC Voltage Range | 100 mV to 300 V |
| DC Voltage Accuracy | ±0.0030% of reading (best accuracy on 100 mV range) |
| Resistance Measurement Range | 100 Ω to 100 MΩ (2-wire and 4-wire) |
| Maximum Input Voltage | 300 V DC or AC RMS |
| Communication Interfaces | GPIB (IEEE-488), RS-232, and Ethernet |
| Display | 4.5-digit or 6.5-digit resolution, dual-line vacuum fluorescent display (VFD) |
| Scanning Speed | Up to 500 readings per second (internal memory logging) |
| Internal Memory | Up to 450,000 readings stored in internal buffer |
| Model | 2701 |
|---|

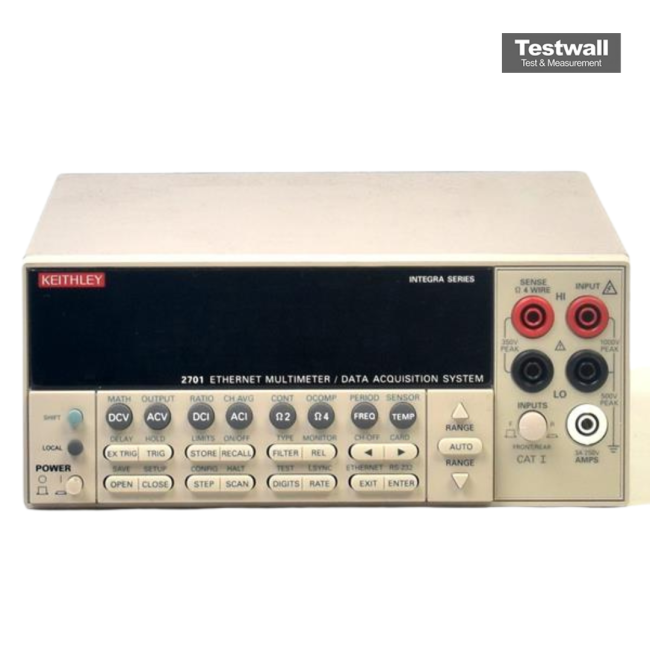

The Keithley 2701 Data Acquisition System from the Integra Series integrates precision measurement, switching, and control in a compact unit suitable for rack or benchtop use. It replaces separate DMMs, switch systems, and data loggers with a single high-performance platform, offering up to 200 two-pole channels and scan rates exceeding 500 channels/sec (up to 3500 readings/sec).
Ideal for system builders, it allows flexible configurations using plug-in modules for signal routing, stimulus application, and I/O triggering, all while supporting up to 14 measurement functions.
Testwall can supply the used Keithley 2701, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 2701.
