Keithley 3706A-SNFP
| Attribute | Value |
|---|---|
| Number of Slots | 6 |
| Maximum Switch Channels | 576 two-wire channels |
| Included Modules | None (mainframe only) |
| System Switch Capability | High-density switching with integrated DMM |
| Integrated DMM | No (SNFP = No Front Panel, No DMM) |
| Front Panel | No front panel display or controls |
| Interface/Connectivity | GPIB, USB, LAN (LXI Core 2011 Compliant) |
| Scanning Speed | Up to 6,000 channels per second (with compatible modules) |
| Operating Temperature | 0°C to 50°C |
| Power Requirements | 100–240 VAC, 50–60 Hz |
| Model | 3706A-SNFP |
|---|

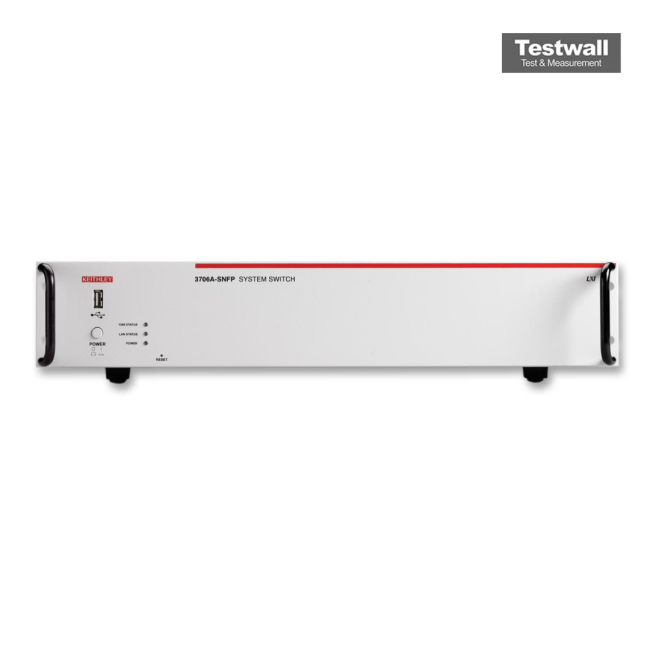

The Keithley 3706A‑SNFP Six‑slot System Switch Mainframe provides a compact 2U (3.5‑inch) enclosure supporting up to six plug‑in switch cards and high channel density—up to 576 two‑wire multiplexers or 2,688 one‑pole matrix crosspoints. It offers Ethernet (LXI), GPIB, and USB interfaces, embedded Test Script Processor (TSP) for distributed control, and optional high‑speed multimeter integration for advanced signal routing and high throughput.
Perfect for automated test, functional verification, and data acquisition systems, it enables flexible card configurations, fast switching, and up to 14,000 readings/sec when mated with the high performance DMM.
Testwall can supply the used Keithley 3706A‑SNFP, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 3706A‑SNFP.
