Keithley 4220-PGU
High Voltage Pulse Generator Unit
±10 V Voltage Output Range
1 mV Voltage Resolution
Up to 50 mA peak Current Output Range
50 Ω Output Impedance
≤2 ns (10%–90%) Rise/Fall Time
| Attribute | Value |
|---|---|
| Voltage Output Range | ±10 V |
| Voltage Resolution | 1 mV |
| Current Output Range | Up to 50 mA peak |
| Output Impedance | 50 Ω |
| Rise/Fall Time | ≤2 ns (10%–90%) |
| Pulse Width Range | 10 ns to DC |
| Timing Resolution | 100 ps |
| Interface/Compatibility | Designed for use with Keithley 4200-SCS Parameter Analyzer |
| Number of Channels | 1 channel per module |
| Form Factor | Plug-in module for Keithley 4200-SCS mainframe |
| Model | 4220-PGU |
|---|

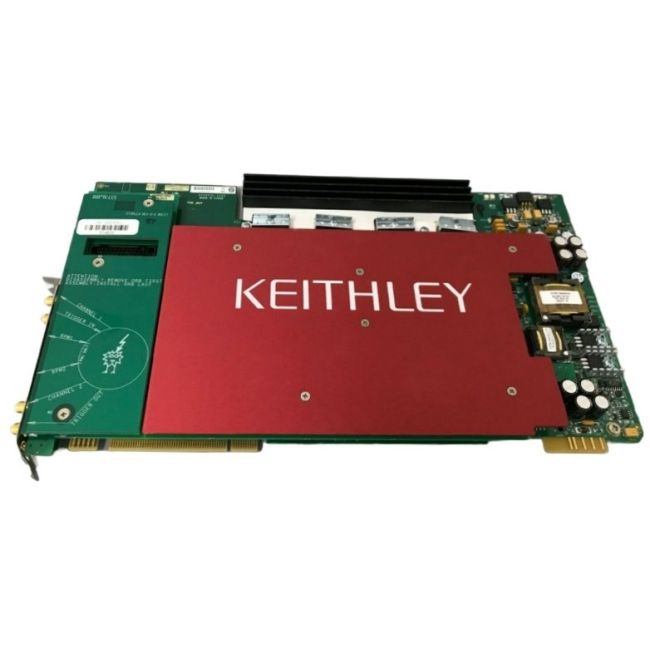

The Keithley 4220-PGU High Voltage Pulse Generator Unit is designed for the 4200A-SCS, offering 2 channels with ±40V output (80Vp-p), up to 2048 segments, and SMA connectors. It delivers pulse-only outputs with a GUI-based configuration, ideal for quick, independent testing.
It enables high-speed I-V sourcing for semiconductors, MEMs, nanodevices, and more, supporting pulsed and transient measurements to minimize heating and drift.
Testwall can supply the used Keithley 4220-PGU, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 4220-PGU
