Keithley 617
| Attribute | Value |
|---|---|
| Measurement Function | Electrometer/High Resistance Meter (Voltage, Current, Resistance, Charge) |
| Voltage Measurement Range | 100 mV to 200 V (7 ranges) |
| Current Measurement Range | 100 fA to 2 mA (14 ranges) |
| Resistance Measurement Range | 100 kΩ to 200 TΩ (13 ranges) |
| Charge Measurement Range | 10 nC to 2 µC (4 ranges) |
| Input Impedance | Greater than 200 TΩ in parallel with less than 20 pF |
| Voltage Source Output | ±100 V internal voltage source for resistance measurements |
| Display | 3½-digit LED display with polarity indication |
| Interface | IEEE-488 (GPIB) programmable interface |
| Power Requirements | 105–125 V or 210–250 V AC, 50/60 Hz, 30 VA maximum |
Keithley 617 Options:
- 617 - 6011 - Triaxial Input Cable (Accessory Supplied)
| Model | 617 |
|---|

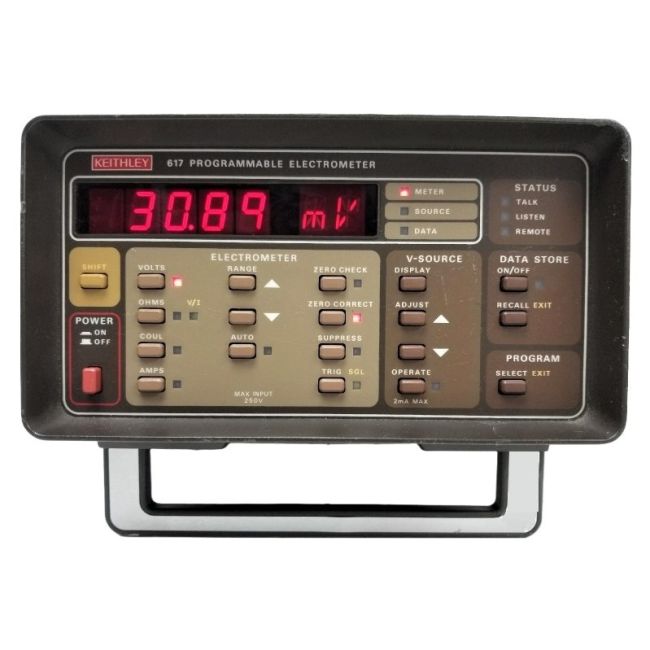

The Keithley 617 Programmable Electrometer features ultra-sensitive measurements for voltage (10 µV to 200 V), current (0.1 fA to 20 mA), charge (10 fC to 20 nC), and resistance (0.1 Ω to 200 GΩ or 10^16 Ω via voltage source). It includes dual resistance methods, 4.5-digit display, IEEE-488 interface, autoranging, digital calibration, and a 100-point data buffer.
Ideal for low-level signal applications, it offers isolated 100 V source, selectable guarding, zero correction, baseline suppression, one-shot triggering, and analog outputs, providing robust testing in sensitive environments.
Testwall can supply the used Keithley 617 Programmable Electrometer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 617 Programmable Electrometer.
