Keithley 6517A
| Attribute | Value |
|---|---|
| Voltage Measurement Range | 200 V maximum input, ±200 V source output |
| Current Measurement Range | 1 fA to 20 mA (10 ranges) |
| Resistance Measurement Range | Up to 10^16 Ω (using built-in voltage source) |
| Charge Measurement Range | ±2 nC to ±2 μC |
| Built-in Voltage Source | ±1000 V programmable voltage source with 200 V, 1000 V ranges |
| Input Impedance | Greater than 200 TΩ |
| Low Current Measurement Accuracy | 1% basic accuracy for current measurements down to femtoamp levels |
| Interface/Connectivity | IEEE-488 (GPIB) and RS-232 interfaces standard |
| Display | 3½-inch vacuum fluorescent display (VFD) with dual-line readout |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Model | 6517A |
|---|

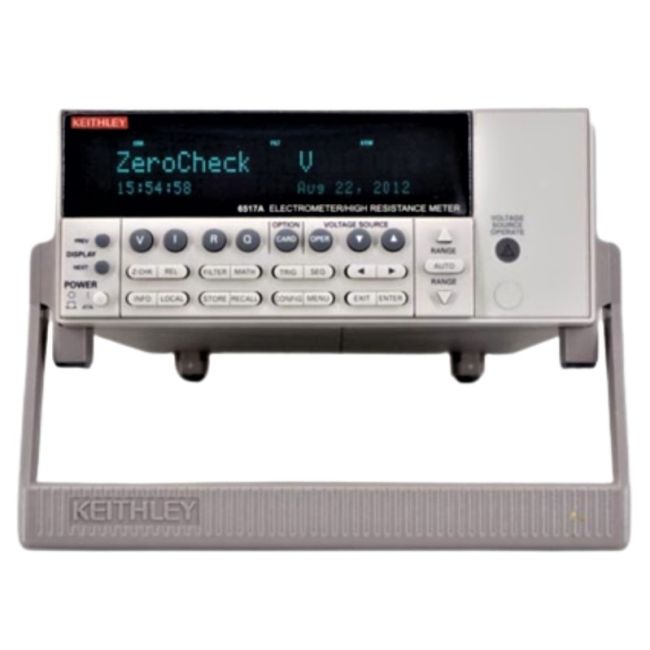

The Keithley 6517A 5 1/2 digit Electrometer / High Resistance Meter delivers superior precision in current, voltage, resistance, and charge measurements. It covers current from 1fA to 20mA, voltage from 10µV to 200V, resistance from 50Ω to 10^16Ω, and charge from 10fC to 2µC. With full autoranging and a low current input amplifier featuring minimal input bias current, it provides unmatched accuracy and sensitivity.
This compact, half-rack unit allows fast data acquisition with read rates up to 125 readings per second, ideal for measuring high resistances and resistivity in insulating materials.
Testwall can supply the used Keithley 6517A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 6517A.
