Keithley

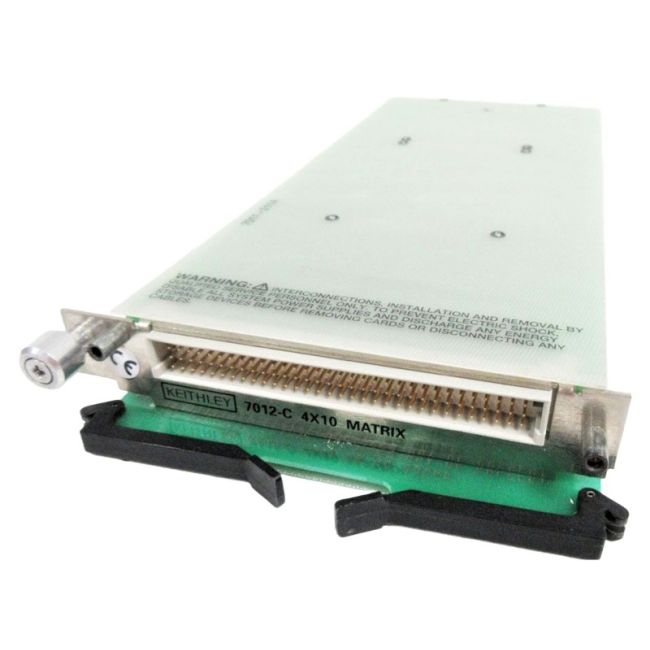

Keithley 7012-C
Matrix Card, 4x10, 2-Pole Matrix w/ 96-Pin Terminated Connector Board
40 Number of Channels
4×10 Matrix Switch Configuration
Keithley 707B, 708B Compatible Mainframe
Reed Relays Relay Type
110 V DC Maximum Voltage
| Attribute | Value |
|---|---|
| Number of Channels | 40 |
| Switch Configuration | 4×10 Matrix |
| Compatible Mainframe | Keithley 707B, 708B |
| Relay Type | Reed Relays |
| Maximum Voltage | 110 V DC |
| Maximum Current | 1 A |
| Maximum Power | 10 W per relay |
| Contact Resistance (Initial) | 100 mΩ maximum |
| Insulation Resistance | 10⁹ Ω minimum |
| Card Form Factor | Single-slot switching card |
Keithley 7012-C Options:
- 7012-C - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7012-C |
|---|
The Keithley 7012-C features dual 1x10 2-pole multiplexer banks, supporting simultaneous signal routing and ideal for dual-channel data acquisition. It provides screw terminals for secure, solid connections.
Perfectly suited for voltage, resistance, and temperature measurements, this module ensures flexibility and ease of integration into Keithley 7001/7002 mainframes.
Testwall can supply the used Keithley 7012-C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7012-C.
