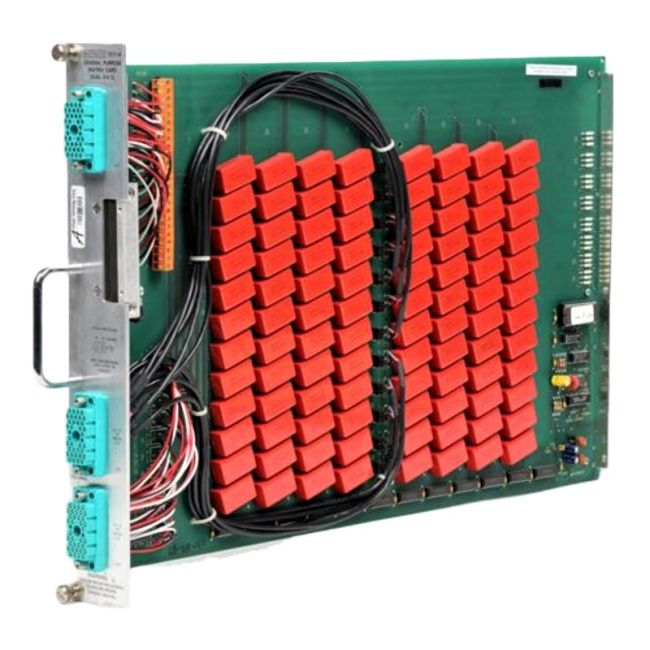

Keithley 7071-4
| Attribute | Value |
|---|---|
| Compatible Mainframe | Keithley 7071 Matrix Card Mainframe |
| Matrix Configuration | 4 × 28 (4 rows × 28 columns) |
| Number of Crosspoints | 112 crosspoints |
| Switch Type | Reed relay switching |
| Maximum Voltage | 110 V DC or RMS |
| Maximum Current per Channel | 1 A |
| Maximum Power per Channel | 10 W |
| Contact Resistance | Less than 1 Ω initial |
| Insulation Resistance | Greater than 10⁹ Ω |
| Card Slots Required | 1 slot in 7071 mainframe |
Keithley 7071-4 Options:
- 7071-4 - 7078-CIT - Contact Insertion and Extraction Tools
- 7071-4 - 7078-HCT - Hand Crimping Tool
- 7071-4 - 7078-KIT - Mass Terminated Plug with Contacts
- 7071-4 - 7078-MTC-5 - Mass Terminated Cable Assembly, 1.5m (5 ft)
- 7071-4 - 7078-MTC-20 - Mass Terminated Cable Assembly, 6m (20 ft)
- 7071-4 - 7078-MTR - Mass Terminated Receptacle with Contacts
- 7071-4 - 7071-4-3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7071-4 |
|---|
The Keithley 7071-4 is a 4x10 matrix card that extends the capabilities of the standard 7071, offering four-slot wide configurations ideal for high-accuracy switching and simultaneous multi-path testing applications. It supports up to 200V and 0.5A, ensuring high performance and isolation for low-leakage circuits in semiconductor testing.
This module is specifically engineered for integration with Model 707/708 mainframes and delivers superior routing isolation and minimal signal leakage, making it perfect for sensitive device characterization tasks.
Testwall can supply the used Keithley 7071-4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7071-4.
