Keithley

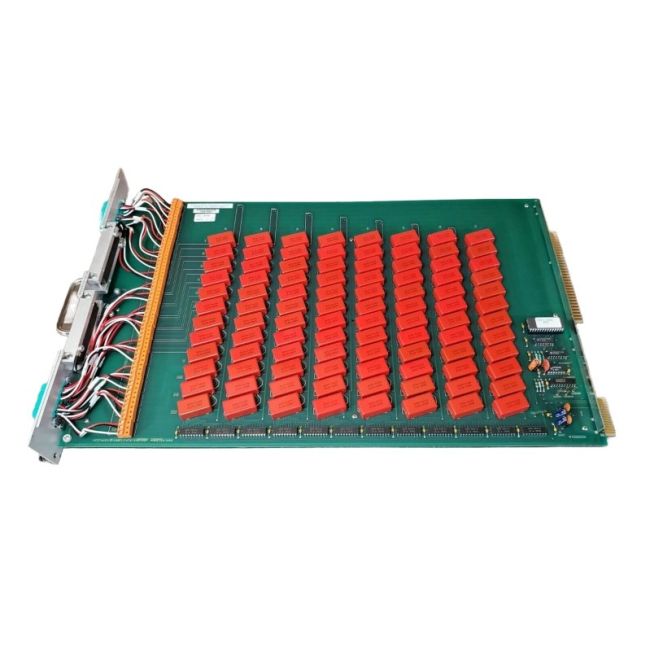

Keithley 7071
General Purpose Matrix Card, 8x12
70 Number of Channels
7 x 10 Matrix Matrix Configuration
Keithley 707B, 708B Compatible Mainframe
200 V Maximum Voltage
1 A per channel Maximum Current
| Attribute | Value |
|---|---|
| Number of Channels | 70 |
| Matrix Configuration | 7 x 10 Matrix |
| Compatible Mainframe | Keithley 707B, 708B |
| Maximum Voltage | 200 V |
| Maximum Current | 1 A per channel |
| Contact Resistance | Less than 1 Ohm |
| Relay Type | Reed Relay |
| Connector Type | Screw Terminal |
| Card Form Factor | Single-slot plug-in card |
| Operating Temperature Range | 0°C to 50°C |
Keithley 7071 Options:
- 7071 - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7071 |
|---|
The Keithley 7071 is a 4x10 high-isolation reed relay matrix card designed for Model 707 or 708 mainframes, offering 40 crosspoints with 200V, 0.5A per contact capability for versatile parametric testing.
Its plug-and-play integration and high-reliability switching make it ideal for automated test setups requiring consistent signal routing.
Testwall can supply the used Keithley 7071, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7071.
