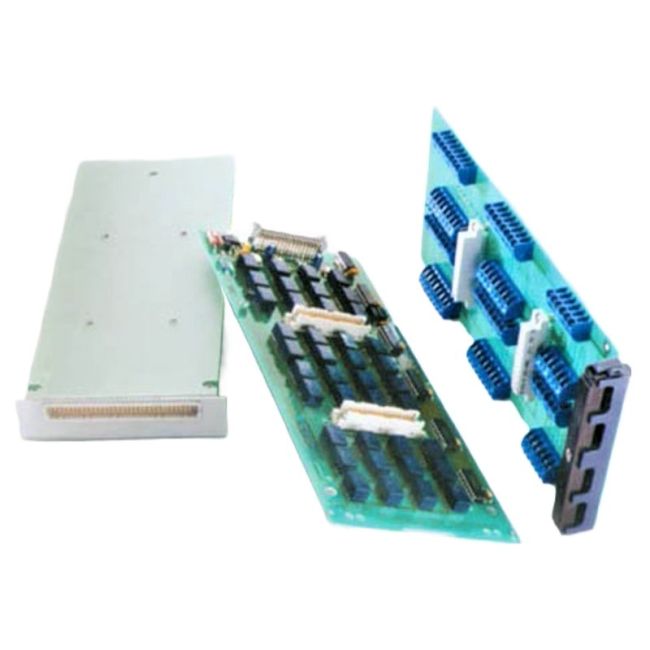

Keithley 7111-S
| Attribute | Value |
|---|---|
| Number of Channels | 20 |
| Card Type | Switch/Control Card |
| Compatible Mainframe | Keithley 7001, 7002 |
| Switch Configuration | 4×5 Two-Pole Matrix |
| Maximum Voltage | 300 V DC or AC RMS |
| Maximum Current | 1 A |
| Maximum Power | 60 W per channel |
| Contact Resistance | ≤1 Ω initial |
| Relay Type | Reed Relay |
| Connector Type | Screw Terminal |
Keithley 7111-S Options:
- 7111-S - 7111-S-3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
- 7111-S - 7011-ST - Extra Screw Terminal Connection Board
| Model | 7111-S |
|---|
The Keithley 7111-S is a high-speed, 40-channel, single-pole switch card designed for precise and low-resistance switching. It features solid-state relays ensuring fast response times, supports up to 100V and 1A, and offers long relay life for durability. This module integrates seamlessly with Keithley 7001/7002 mainframes, making it ideal for versatile switching applications.
Perfect for automated test setups, the 7111-S enables efficient routing of signals across multiple points with minimal signal degradation. Its robust design ensures consistent performance under demanding test conditions.
Testwall can supply the used Keithley 7111-S, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7111-S.
