Keithley 7711
| Attribute | Value |
|---|---|
| Number of Channels | 40 channels (20 two-pole or 10 four-pole multiplexer channels) |
| Switching Configuration | 1×20 two-pole multiplexer or 1×10 four-pole multiplexer |
| Voltage Maximum (AC) | 300 V RMS |
| Voltage Maximum (DC) | 300 VDC |
| Current Maximum | 1 A switched, 2 A carry |
| Power Maximum per Channel | 30 W |
| Contact Resistance | 1 Ω initial, typical |
| Insulation Resistance | >10^9 Ω at 500 VDC |
| Compatible Mainframe | Keithley Series 2700, 2701, 2750 Multimeter/Switch Systems |
| Relay Type | Electromechanical relays with 100,000 operations minimum life |
Keithley 7711 Options:
- 7711 - 3Y-EW - 1-year factory warranty extended to 3 years from date of shipment
| Model | 7711 |
|---|

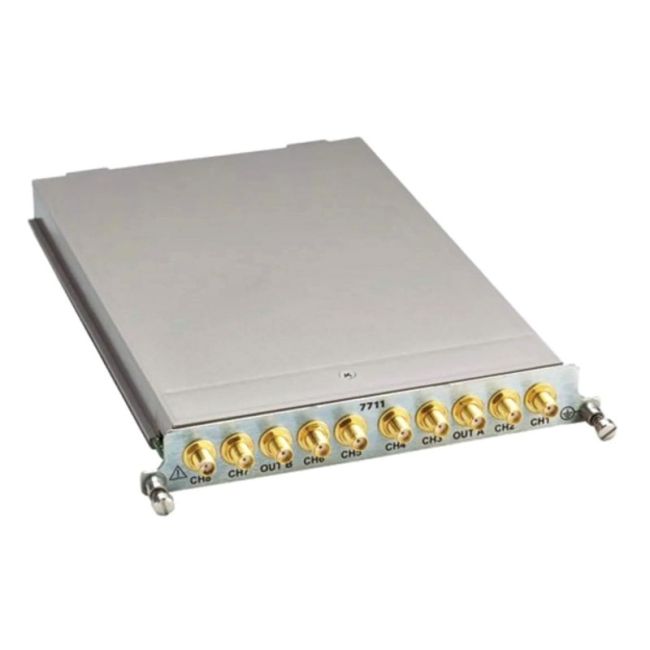

The Keithley 7711 plug-in module delivers high-performance signal routing with dual 1x4 configurations, supporting wideband operations up to 2GHz. It switches up to 60VDC and handles 30Vrms, 20W per module, 10W per channel, offering compatibility with oscilloscopes, pulse generators, and signal analyzers.
All channels are rear-panel accessible via SMA connectors, with onboard switch closure counter and S parameter storage, making it an efficient choice for AC instrumentation interfacing.
Testwall can supply the used Keithley 7711, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 7711.
