Keithley
Keithley 8010
High Power Device Test Fixture
Keithley Series 2400, 2600, 6400, and other SMU instruments Compatible Instruments
High Power Device Test Fixture for semiconductor device characterization Primary Function
3000 V Maximum Voltage Rating
10 A Maximum Current Rating
4 (Force HI, Force LO, Sense HI, Sense LO) Number of Terminals
| Attribute | Value |
|---|---|
| Compatible Instruments | Keithley Series 2400, 2600, 6400, and other SMU instruments |
| Primary Function | High Power Device Test Fixture for semiconductor device characterization |
| Maximum Voltage Rating | 3000 V |
| Maximum Current Rating | 10 A |
| Number of Terminals | 4 (Force HI, Force LO, Sense HI, Sense LO) |
| Connector Type | Triax and banana binding post connectors |
| Interlocks | Safety interlock system included for high voltage protection |
| Device Under Test (DUT) Interface | Kelvin (4-wire) connection support for accurate low-resistance measurements |
| Construction | Shielded enclosure to minimize noise and leakage currents |
| Compliance Standards | Designed to meet high voltage safety and EMC standards for laboratory use |
Keithley 8010 Options:
- 8010 - SHV-CA-553-1 - High-voltage triaxial to SHV cable 3.3 ft (1.0 m)
- 8010 - SHV-CA-553-2 - High-voltage triaxial to SHV cable 6.6 ft (2.0 m)
- 8010 - SHV-CA-553-3 - High-voltage triaxial to SHV cable 9.8 ft (3.0 m)
- 8010 - HV-CA-554-.5 - High-voltage triaxial cable 1.6 ft (0.5 m)
- 8010 - HV-CA-554-1 - High-voltage triaxial cable 3.3 ft (1.0 m)
- 8010 - HV-CA-554-2 - High-voltage triaxial cable 6.6 ft (2.0 m)
- 8010 - HV-CA-554-3 - High-voltage triaxial cable 9.8 ft (3.0 m)
- 8010 - CA-557-1 - Eight-pin male/receptacle cable assembly 3.3 ft (1 m)
- 8010 - CA-557-2 - Eight-pin male/receptacle cable assembly 6.6 ft (2 m)
- 8010 - CA-557-3 - Eight-pin male/receptacle cable assembly 9.8 ft (3 m)
- 8010 - CA-558-1 - Three-pin interlock connector cable 3.3 ft (1 m)
- 8010 - CA-558-2 - Three-pin interlock connector cable 6.6 ft (2 m)
- 8010 - CA-558-3 - Three-pin interlock connector cable 9.8 ft (3 m)
- 8010 - CA-559-0 - Black banana-plug jumper cable 4 in. (102 mm)
- 8010 - CA-559-2 - Red banana-plug jumper cable 4 in. (102 mm)
- 8010 - CA-560-0 - Banana-plug jumper cable 8 in. (203 mm)
- 8010 - CA-560-2 - Banana-plug jumper cable 8 in. (203 mm)
- 8010 - CA-561-0 - Black banana-plug jumper cable 12 in. (305 mm)
- 8010 - CA-561-2 - Red banana-plug jumper cable 12 in. (305 mm)
- 8010 - CA-562-0 - Black safety banana-plug jumper cable, 10 in. (254 mm)
- 8010 - CA-562-2 - Red safety banana-plug jumper cable, 10 in. (254 mm)
- 8010 - CA-563 - BNC to banana-plug cable, 9.5 in. (241 mm)
- 8010 - CA-567-0 - Black stack-up banana-plug cable, 9 in. (22.86 cm)
- 8010 - CA-567-2 - Red stack-up banana-plug cable, 9 in. (22.86 cm)
- 8010 - CA-568-12 - Protective earth (safety ground) cable 12 in. (304.8 mm)
- 8010 - CA-568-18 - Protective earth (safety ground) cable 18 in. (457.2 mm)
- 8010 - CA-568-120 - Protective earth (safety ground) cable 120 in. (304.8 cm)
- 8010 - CS-1592-2 - Two-pin female/plug termination block
- 8010 - CS-1626-2 - 2-pin panel-mount female and receptacle cable termination block
- 8010 - 236-ILC-3 - Three-pin interlock cable for Model 4200-SCS
- 8010 - 2600-KIT - Screw terminal connector kit
- 8010 - 2651A-KIT-1 - High-current cable kit 3.3 ft (1 m)
- 8010 - 2651A-KIT-2 - High-current cable kit 6.6 ft (2 m)
- 8010 - 2651A-KIT-3 - High-current cable kit 9.8 ft (3 m)
- 8010 - 8010-317 - Socket insulating plugs (10 pieces per card)
- 8010 - 8010-318 - Document pouches
- 8010 - 8010-CTB - Customizable test board that the customer can configure
- 8010 - 8010-DTB - Device test board for use with three-terminal TO-247 or two-terminal axial devices
- 8010 - 8010-DTB-220 - Device test board for use with three-terminal TO-220 or TO-247 packages or two-terminal axial devices, Limited to 1000 V
| Model | 8010 |
|---|

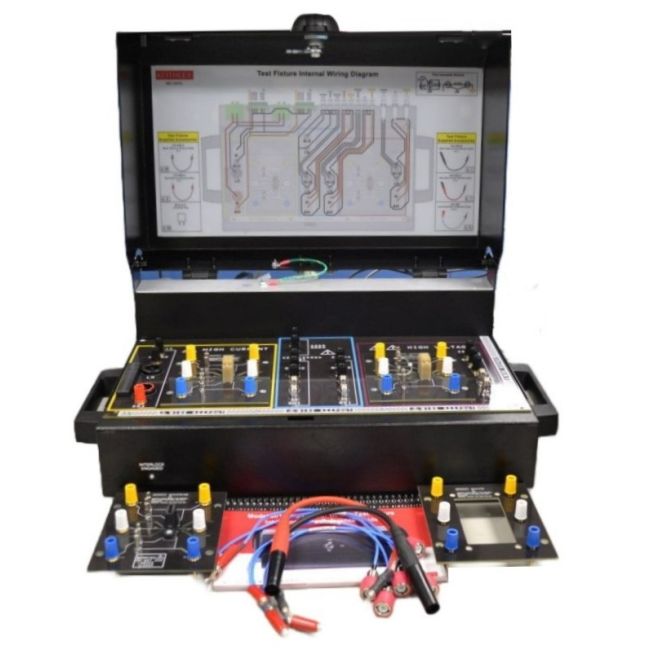

The Keithley 8010 High Power Device Test Fixture supports testing up to 3000V or 100A, safely connecting high-power and low-power SourceMeter units for complex semiconductor characterization. It allows simultaneous use of six SMU instruments, including Models 2657A, 2651A, and others from Series 2600A or 4200-SCS.
Equipped with interlock capabilities and integrated protection circuits, it includes both high voltage and high current test sockets, supporting TO-247, TO-220, axial lead, and customizable configurations.
Testwall can supply the used Keithley 8010, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley 8010.
