Keithley DMM6500
| Attribute | Value |
|---|---|
| Number of Display Digits | 6½ digits |
| Maximum Resolution | 1 µV DC voltage resolution |
| DC Voltage Measurement Range | 100 mV to 1000 V |
| AC Voltage Measurement Range | 100 mV to 750 V |
| DC Current Measurement Range | 10 µA to 10 A |
| Resistance Measurement Range | 10 Ω to 1 GΩ (2-wire and 4-wire modes) |
| Maximum Reading Rate | 1,000,000 readings per second (via digitize functions) |
| Display Type | 5-inch (12.7 cm) capacitive touchscreen LCD |
| Connectivity & Interface | USB, LAN (LXI), GPIB (optional), TSP-Link |
| Internal Memory | Up to 27,500,000 readings stored internally |
Keithley DMM6500 Options:
- DMM6500 - AO - North America power plug (120 V, 60 Hz)
- DMM6500 - A1 - Universal Euro power plug (220 V, 50 Hz)
- DMM6500 - A2 - United Kingdom power plug (240 V, 50 Hz)
- DMM6500 - A3 - Australia power plug (240 V, 50 Hz)
- DMM6500 - A4 - Chile, Italy (220 V, 50 Hz)
- DMM6500 - A5 - Switzerland power plug (220 V, 50 Hz)
- DMM6500 - A6 - Japan power plug (100 V, 50/60 Hz)
- DMM6500 - A7 - Denmark
- DMM6500 - A8 - Israel
- DMM6500 - A9 - Argentina
- DMM6500 - A10 - China power plug (50 Hz)
- DMM6500 - A11 - India power plug (50 Hz)
- DMM6500 - A12 - Brazil power plug (60 Hz)
- DMM6500 - A99 - No power cord
- DMM6500 - KTTI-GPIB - GPIB Communication and Digital I/O Accessory, user-installable
- DMM6500 - KTTI-RS232 - RS-232 Communication and Digital I/O Accessory, user-installable
- DMM6500 - KTTI-TSP - TSP-Link Communication and Digital I/O Accessory, user-installable
- DMM6500 - EW - 3 year factory warranty extended to 4 years from date of shipment
- DMM6500 - 5Y-EW - 3 year factory warranty extended to 5 years from date of shipment
| Model | DMM6500 |
|---|

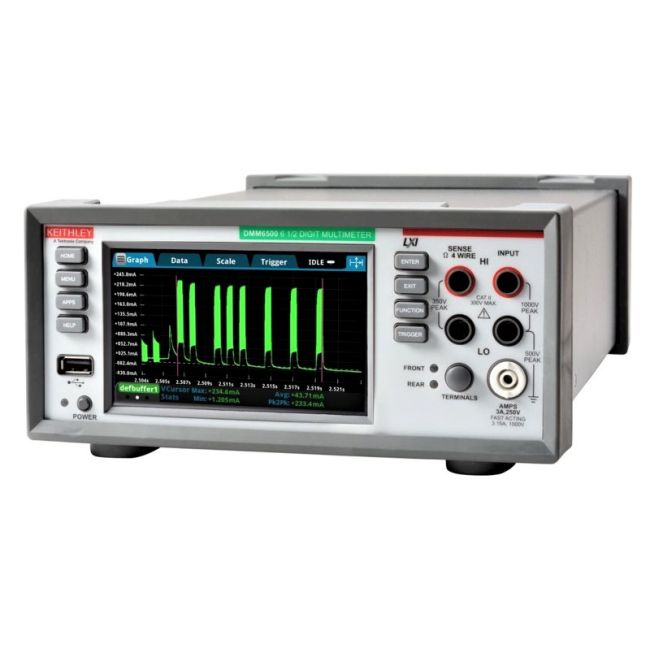

The Keithley DMM6500 Digital Multimeter features a 5-inch capacitive touchscreen, 15 measurement functions including capacitance and temperature, and a digitizing speed of up to 1 MS/sec. It supports SCPI and TSP scripting, and can emulate Keithley 2000 and Keysight 34401A SCPI, with measurement ranges from 10 pA to 10 A.
With optional scanner cards and wide-ranging input capabilities, it efficiently handles RTD, thermistor, and thermocouple-based temperature measurements, enabling multi-channel data logging with high precision.
Testwall can supply the used Keithley DMM6500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley DMM6500.
