Keithley DMM7510
| Attribute | Value |
|---|---|
| Display | 5-inch (12.7 cm) capacitive touchscreen, 800 x 480 pixel resolution |
| DC Voltage Measurement Range | 100 mV to 1000 V |
| DC Voltage Accuracy | Up to 7½-digit resolution (35 ppm basic accuracy) |
| AC Voltage Measurement Range | 100 mV to 700 V (RMS), 1000 V peak |
| Resistance Measurement Range | 10 Ω to 1 GΩ (2-wire and 4-wire modes) |
| DC Current Measurement Range | 10 µA to 10 A |
| Digitizing Sampling Rate | Up to 1,000,000 samples per second (1 MS/s) |
| Memory | Up to 27 million readings internal storage |
| Connectivity & Interfaces | USB, LAN (LXI), GPIB (optional), digital I/O, TSP scripting support |
| Power Requirements | 100–240 VAC, 50/60 Hz, 75 W maximum |
Keithley DMM7510 Options:
- DMM7510 - DMM7510 - 7½-Digit Graphical Sampling Multimeter
- DMM7510 - DMM7510-NFP - 7½-Digit Graphical Sampling Multimeter, with No Front Panel
- DMM7510 - DMM7510-RACK - 7½-Digit Graphical Sampling Multimeter, with No Handle
- DMM7510 - DMM7510-NFP-RACK - 7½-Digit Graphical Sampling Multimeter, with No Front Panel and No Handle
| Model | DMM7510 |
|---|

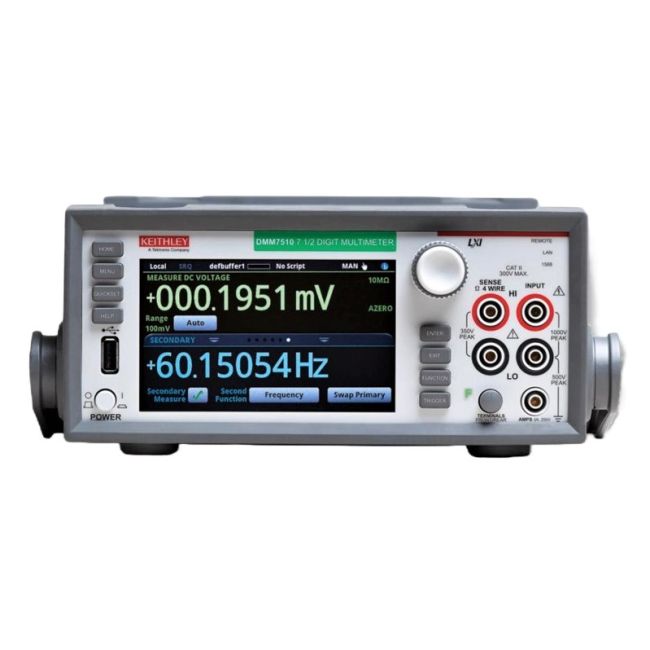

The Keithley DMM7510 integrates a precision digital multimeter with a high-speed 18-bit, 1 MS/sec digitizer and a graphical touchscreen display, offering unmatched waveform capture and visualization. Its low-noise input and 32-bit A/D converter enable metrology-grade DC accuracy across a broad measurement spectrum.
This instrument excels in applications demanding transient analysis, such as measuring sleep to active mode transitions. It supports voltage/current digitizing, resistance, frequency, temperature, and diode tests.
Testwall can supply the used Keithley DMM7510, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley DMM7510.
