Keithley DMM7512
| Attribute | Value |
|---|---|
| Number of Digits | 7½ digits |
| DC Voltage Measurement Range | 100 mV to 1000 V |
| DC Voltage Basic Accuracy | 0.0035% (90-day, 23°C ±5°C) |
| AC Voltage Measurement Range | 100 mV to 750 V RMS |
| Resistance Measurement Range | 10 Ω to 1 GΩ (2-wire); 10 Ω to 100 MΩ (4-wire) |
| DC Current Measurement Range | 10 µA to 3 A |
| Maximum Reading Rate | 1,000,000 readings per second |
| Memory | 27,500,000 readings |
| Connectivity / Interface | USB, LAN (LXI), GPIB (optional), Digital I/O |
| Display | 5-inch (12.7 cm) capacitive touchscreen color display |
Keithley DMM7512 Options:
- DMM7512 - A0 - Power Cord, North America (120 V, 60 Hz)
- DMM7512 - A1 - Power Cord, Universal Euro (220 V, 50 Hz)
- DMM7512 - A2 - Power Cord, United Kingdom (240 V, 50 Hz)
- DMM7512 - A3 - Power Cord, Australia (240 V, 50 Hz)
- DMM7512 - A4 - Power Cord, Chile, Italy (220 V, 50 Hz)
- DMM7512 - A5 - Power Cord, Switzerland (220 V, 50 Hz)
- DMM7512 - A6 - Power Cord, Japan (100 V, 50/60 Hz)
- DMM7512 - A7 - Power Cord, Denmark (230 V, 50 Hz)
- DMM7512 - A8 - Power Cord, Israel (230 V, 50 Hz)
- DMM7512 - A9 - Power Cord, Argentina (220 V, 50 Hz)
- DMM7512 - A10 - Power Cord, China (230 V, 50 Hz)
- DMM7512 - A11 - Power Cord, India (230 V, 50 Hz)
- DMM7512 - A12 - Power Cord, Brazil (127 V/220 V, 60 Hz)
- DMM7512 - A99 - No Power Cord
- DMM7512 - DMM7512-EW - 1 Year Factory Warranty Extended to 2 Years from Date of Shipment
- DMM7512 - DMM7512-3Y-EW - 1 Year Factory Warranty Extended to 3 Years from Date of Shipment
- DMM7512 - DMM7512-5Y-EW - 1 Year Factory Warranty Extended to 5 Years from Date of Shipment
- DMM7512 - C/DMM7512-3Y-STD - KeithleyCare 3 Year Std Calibration Plan
- DMM7512 - C/DMM7512-3Y-DATA - KeithleyCare 3 Year Calibration w/Data Plan
- DMM7512 - C/DMM7512-3Y-17025 - KeithleyCare 3 Year ISO-17025 Calibration Plan
- DMM7512 - C/DMM7512-5Y-STD - KeithleyCare 5 Year Std Calibration Plan
- DMM7512 - C/DMM7512-5Y-DATA - KeithleyCare 5 Year Calibration w/Data Plan
- DMM7512 - C/DMM7512-5Y-17025 - KeithleyCare 5 Year ISO-17025 Calibration Plan
| Model | DMM7512 |
|---|

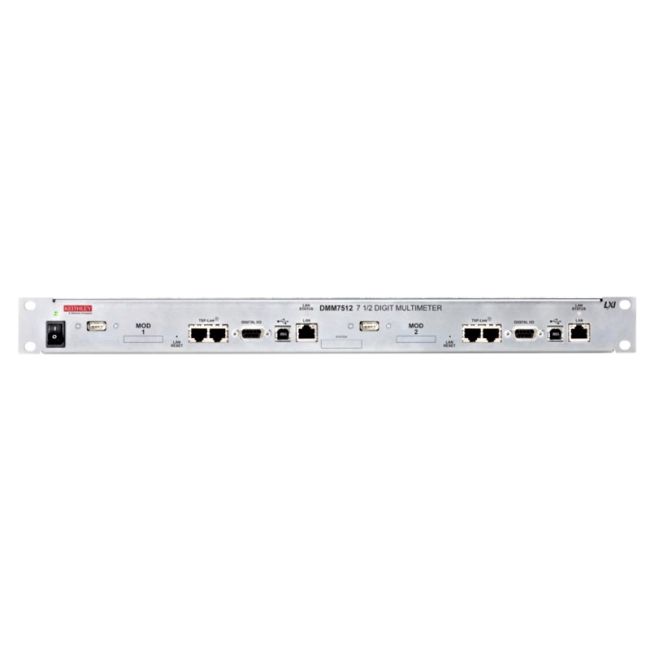

The Keithley DMM7512 Dual Channel 7½-digit Sampling Multimeter integrates two high-performance DMMs in a compact 1U chassis, each operating independently with 14 ppm DC voltage, 24 ppm resistance, and 60 ppm DC current accuracy. Its sensitivity spans 10 nV, 0.1 µΩ, and 1 pA for precise signal detection.
Ideal for voltage, current, and temperature digitizing, the DMM7512 supports fast sampling up to 100,000 measurements/s, enhancing throughput in automated systems.
Testwall can supply the used Keithley DMM7512, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keithley DMM7512.
