Kepco BOP100-1M
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±100 V |
| Output Current Range | 0 to ±1 A |
| Output Power | 100 W |
| Operating Mode | Two-quadrant (voltage and current, bipolar output) |
| Voltage Regulation (Load) | 0.01% of full scale |
| Current Regulation (Load) | 0.01% of full scale |
| Ripple and Noise (Voltage) | 2 mV RMS typical |
| Programming Interface | Analog (±10 V reference), GPIB (IEEE-488), and RS-232 optional |
| Input Power Requirements | 105–125 V / 210–250 V AC, 47–63 Hz, single phase |
| Operating Temperature Range | 0°C to 40°C |
| Model | BOP100-1M |
|---|

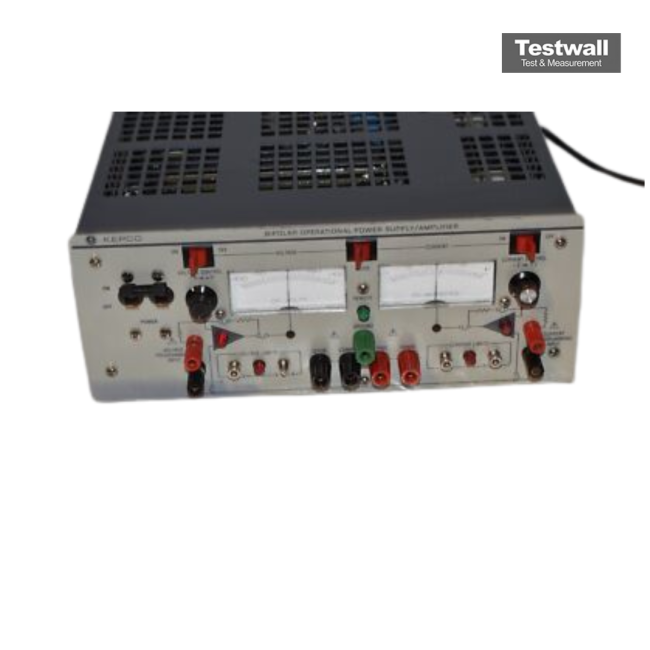

The Kepco BOP100-1M is a high-speed, bipolar operational amplifier and DC power supply delivering ±100V, ±1A, and 100W. It enables sustained DC output and precise AC waveform replication. Featuring full 4-quadrant operation, its voltage and current outputs transition linearly and smoothly through zero without polarity switching.
Ideal for testing and simulation, it offers separate voltage/current control circuits and dynamic voltage delivery. Optimal performance is achieved with resistive loads.
Testwall can supply the used Kepco BOP100-1M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kepco BOP100-1M.
