Kepco
Kepco BOP100-4M
+-100V 4A Bipolar DC Power Supply
0 to ±100 VDC Output Voltage Range
0 to ±4 A Output Current Range
400 W Output Power
Two-quadrant and Four-quadrant (bipolar) operation Operating Mode
Analog programming via external voltage or resistance Programming Interface
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±100 VDC |
| Output Current Range | 0 to ±4 A |
| Output Power | 400 W |
| Operating Mode | Two-quadrant and Four-quadrant (bipolar) operation |
| Programming Interface | Analog programming via external voltage or resistance |
| Output Ripple and Noise (Voltage) | Less than 3 mV RMS |
| Load Regulation | 0.01% of full scale or less |
| Line Regulation | 0.01% of full scale or less |
| Input Power Requirements | 105–125 VAC or 210–250 VAC, 47–63 Hz, single phase |
| Operating Temperature Range | 0°C to 50°C |
| Model | BOP100-4M |
|---|

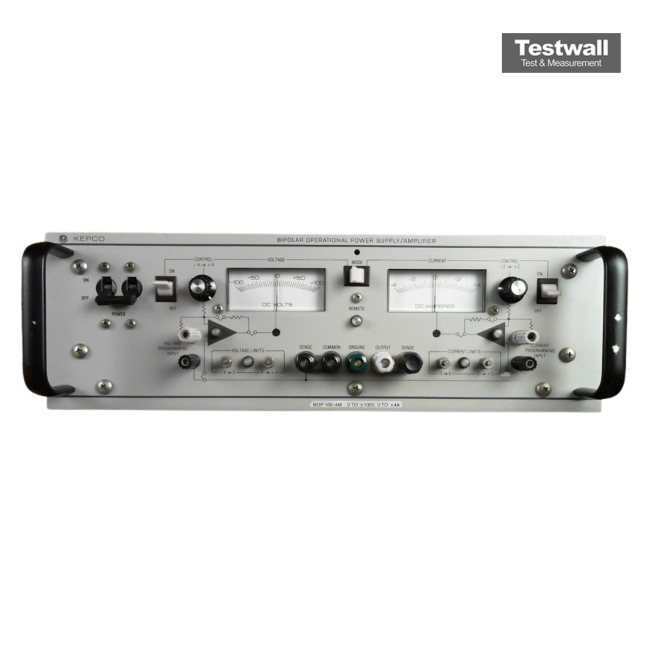

The Kepco BOP100-4M is a high-performance bipolar DC power supply delivering ±100V and 4A output. This four-quadrant source/load unit features fast programmable response, low output noise, and high stability, making it ideal for applications in automated test systems and laboratory environments.
It supports both current and voltage control modes, includes analog and digital control interfaces, and ensures precise operation with superior dynamic response.
Testwall can supply the used Kepco BOP100-4M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kepco BOP100-4M.
