Kepco
Kepco BOP20-10M
200W 20V 10A DC Supply / Amplifier
0 to ±20V Output Voltage Range
0 to ±10A Output Current Range
200W Maximum Output Power
Two-quadrant (Bipolar) Voltage and Current Source Operating Mode
GPIB (IEEE 488.2) and RS232 Programming Interface
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±20V |
| Output Current Range | 0 to ±10A |
| Maximum Output Power | 200W |
| Operating Mode | Two-quadrant (Bipolar) Voltage and Current Source |
| Programming Interface | GPIB (IEEE 488.2) and RS232 |
| Voltage Ripple and Noise | Less than 3mV RMS |
| Current Ripple and Noise | Less than 3mA RMS |
| Load Regulation (Voltage) | Less than 0.01% of full scale |
| Input Voltage (AC) | 105–125V / 210–250V AC, 47–63Hz |
| Operating Temperature Range | 0°C to 40°C |
| Model | BOP20-10M |
|---|

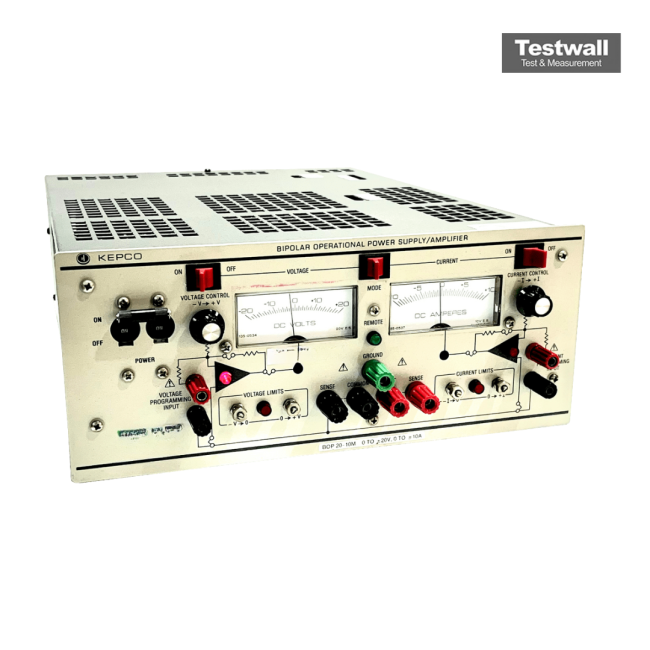

The Kepco BOP20-10M is a 200W, ±20V, ±10A high-speed DC power supply and operational amplifier offering full 4-quadrant, bipolar operation. It delivers sustained DC and replicates arbitrary AC waveforms, allowing smooth transition through zero with no polarity switching.
Ideal for test and simulation applications requiring agile voltage response, the BOP20-10M operates best with resistive loads and includes special terminals for stability with inductive loading.
Testwall can supply the used Kepco BOP20-10M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kepco BOP20-10M.
